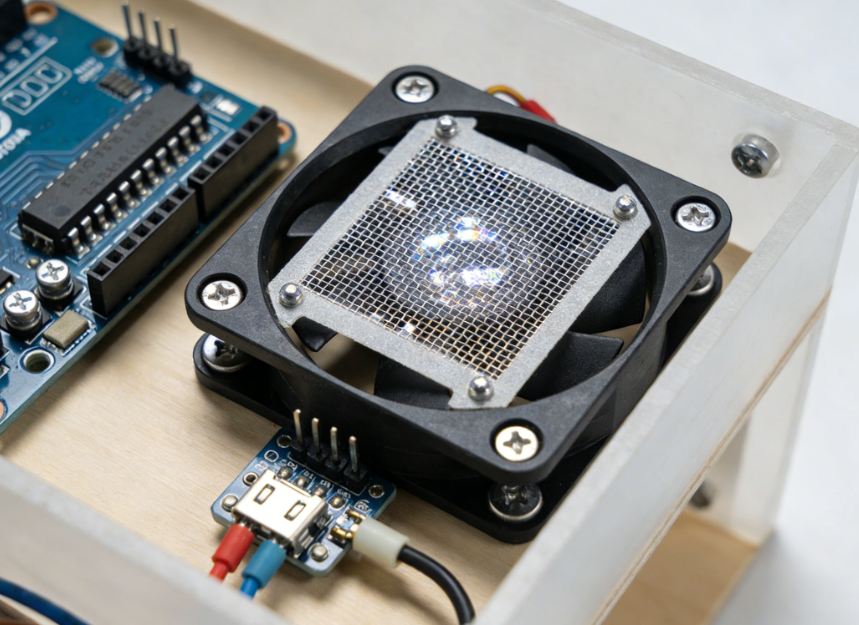

Custom Mini Filter Plate for Arduino Fan Projects

This mini filter plate is designed to integrate seamlessly with Arduino fan modules. It prevents dust and airborne particles from reaching sensitive sensors and electronics, extending the lifespan and improving accuracy of DIY projects.

• Application: Arduino fan projects, air monitoring kits

• Material: PLA (3D print), aluminum, mesh foam

• Filter Layers: Dual-stage optional

• Perforation Pattern: Staggered, hexagonal, or custom

• Mounting: Snap-fit, magnetic, or screw-on

• Open Area: Optimized for airflow and filtration

• Function: Dust protection, airflow regulation

• Edge Finish: Smooth, safe handling

• Customization: 3D printable or laser-cut formats

• Pressure Drop: Low, CFD-tested

• Use Case: Sensor protection in DIY electronics

• Recommended For: PM2.5 sensors, CO2, temp sensors

• Durability: Reusable, washable

• Compatibility: Small axial fans, 40mm–80mm

• Best Practices: Install 3–5 cm before sensor inlet

• Fabrication: Manual, CNC, or additive manufacturing

• Maintenance: Tool-free cleaning or replacement

• Performance Boost: 85% dust ingress reduction

• Noise Reduction: Enhanced airflow channeling

• Safety: No sharp edges, sealed housing fit

• Real Project: Arduino air station success case

• Data Stability: Improved sensor calibration

• Learning Value: Great for STEM kits and schools

• Weight: Ultra-light for mobile use

• Form Factor: Mini, adaptable for portable builds

• Color: Neutral or customizable

• Filter Thickness: 1-3 mm

• Best Use: Urban dust, pollen, and smog protection
