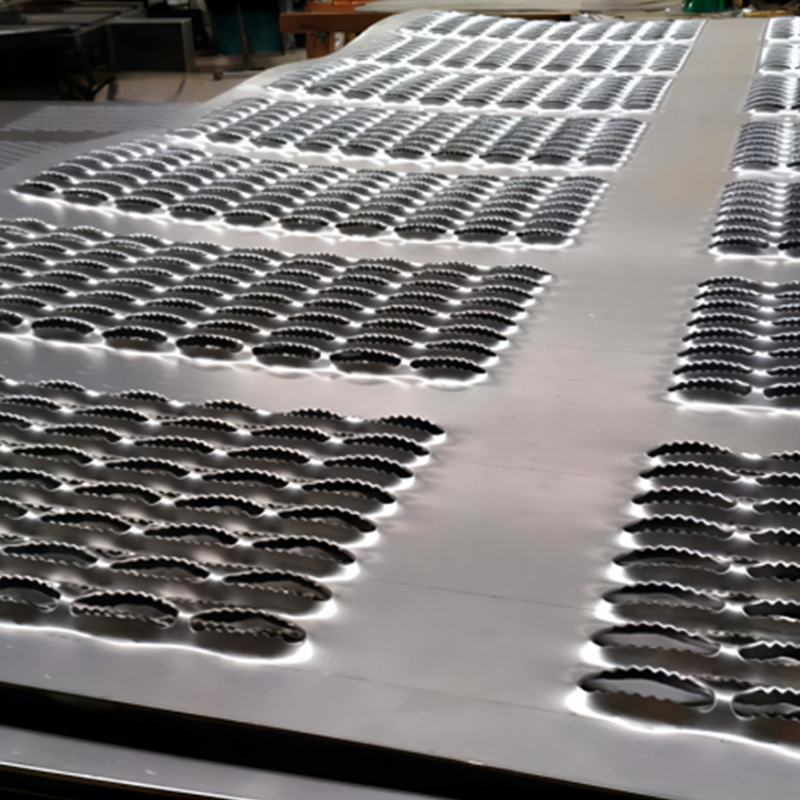

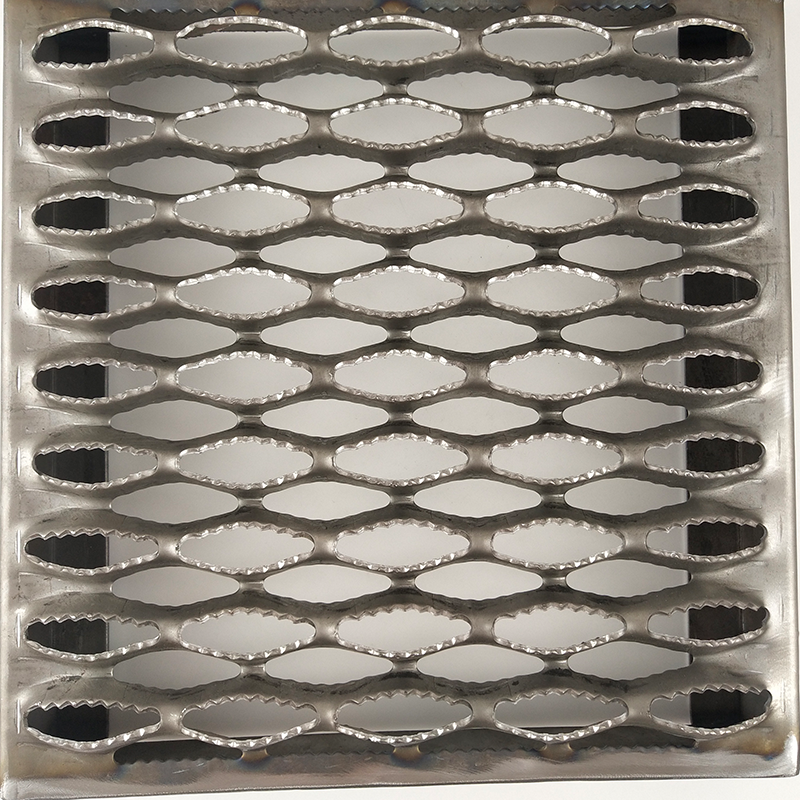

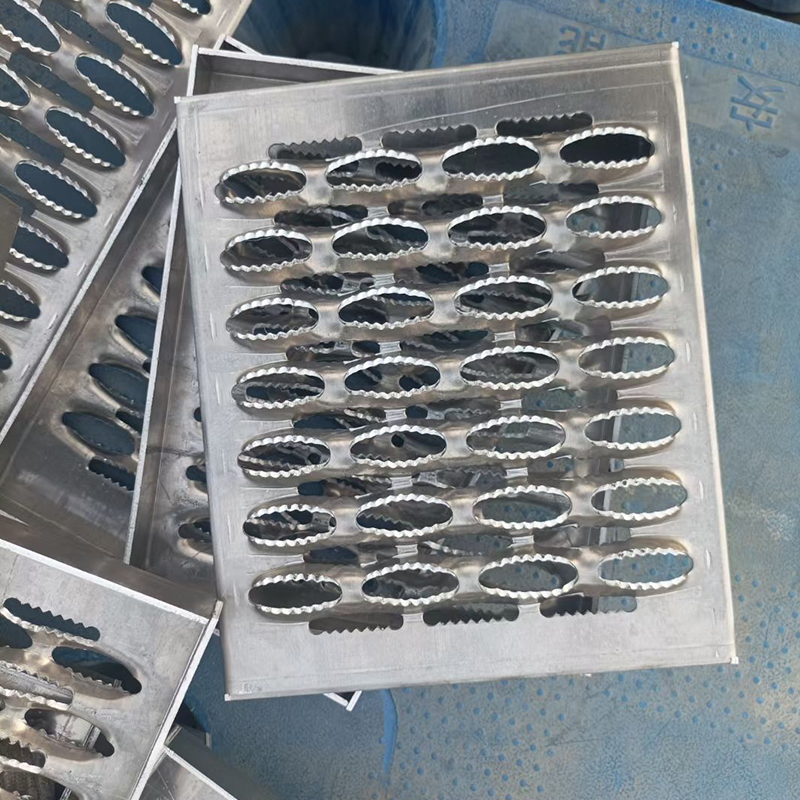

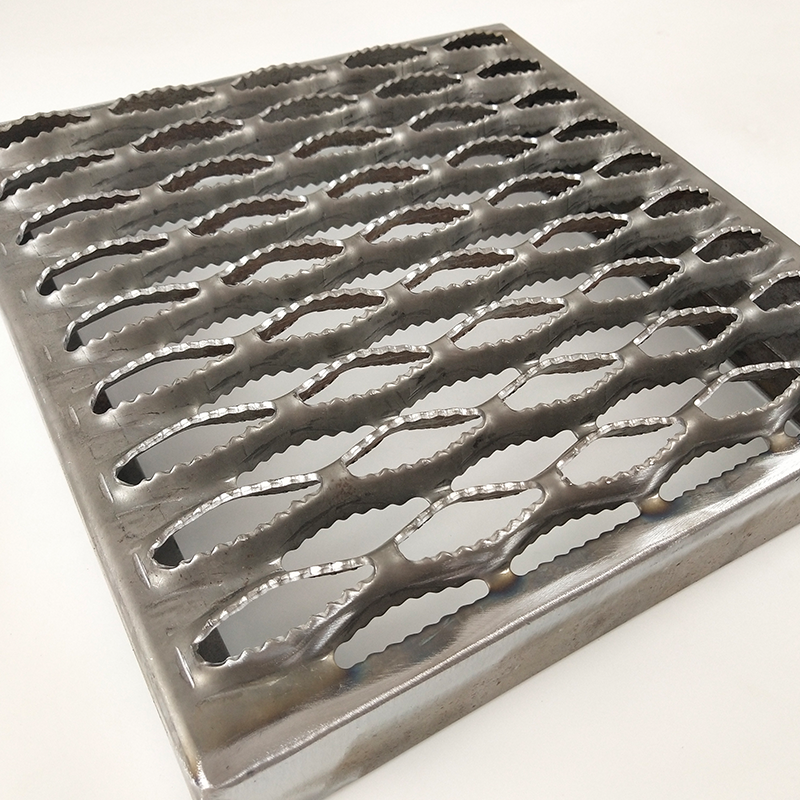

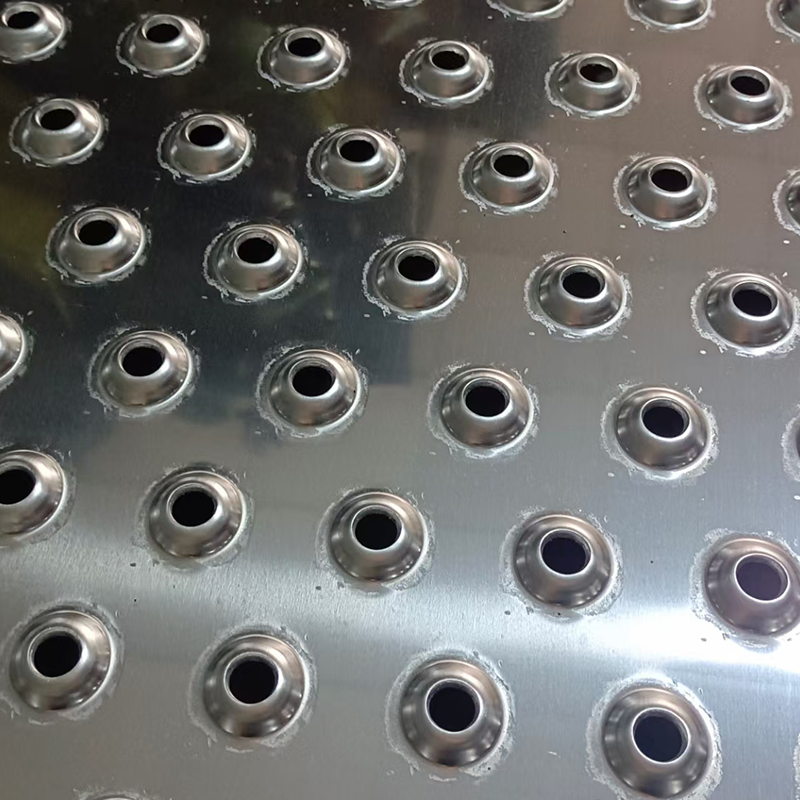

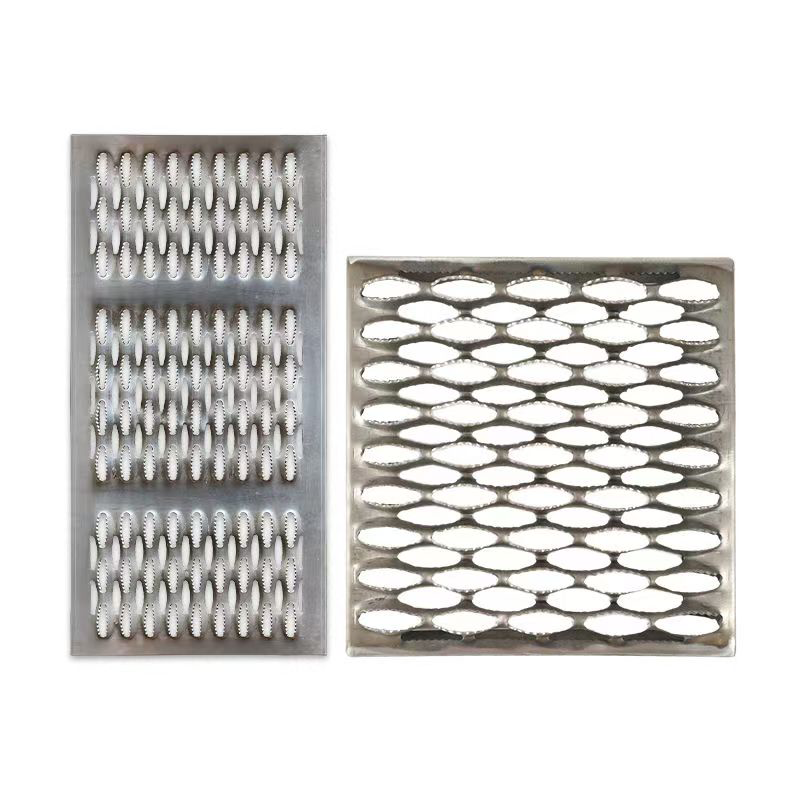

Anti-slip punched plates

Anti-Slip Punched Plates - Standard Dimensional Parameters
1. Core DimensionsParameter Metric Range Imperial Range
Material Thickness 1.5mm - 3.0mm 12 GA - 3/16"
Width: 1000mm / 1220mm/1250mm / 1500mm (39" /48"/ 49" / 59")
Length: 2000mm / 2440mm /2500mm/ 3000mm (78" / 96"/98" / 118")Dimple Diameter 15mm wide * 45mm long(0.59*1.77)
Dimple Height 3mm - 5mm 0.118" - 0.196"
2. Performance ParametersSlip Resistance Rating:
R10-R13 (DIN 51130) / Class B-C (UK Pendulum Test)
Open Area Ratio: 25% - 45% (±3% tolerance)
Static Load Capacity:
≥3 tons/m² (6mm steel) / 650 lb/ft² (with safety factor)
3. Tolerances & Certifications
Flatness Tolerance: ≤1mm/m (ISO 2768 Class M)
Dimple Spacing Accuracy: ±0.15mm
Compliant Standards:
OSHA 1910.22 (US) / EN ISO 14122-3 (EU) / AS 4586 (AU)
4. Material Specifications
Base Materials: Electro-Galvanized Steel (EN 10346)
316L Stainless Steel (ASTM A240)Aluminum 5052-H32 (AAMA 611)
Surface Treatments: Powder coating (RAL/Pantone colors)
Hot-Dip Galvanizing (ISO 1461) / Epoxy Coating (60-80μm)
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- consult

Description

Anti-Slip Punched Plates - Standard Dimensional Parameters

1. Core DimensionsParameter Metric Range Imperial Range

Material Thickness 1.5mm - 3.0mm 12 GA - 3/16"

Width: 1000mm / 1220mm/1250mm / 1500mm (39" /48"/ 49" / 59")

Length: 2000mm / 2440mm /2500mm/ 3000mm (78" / 96"/98" / 118")Dimple Diameter 15mm wide * 45mm long(0.59*1.77)

Dimple Height 3mm - 5mm 0.118" - 0.196"

2. Performance ParametersSlip Resistance Rating:

R10-R13 (DIN 51130) / Class B-C (UK Pendulum Test)

Open Area Ratio: 25% - 45% (±3% tolerance)

Static Load Capacity:

≥3 tons/m² (6mm steel) / 650 lb/ft² (with safety factor)

3. Tolerances & Certifications

Flatness Tolerance: ≤1mm/m (ISO 2768 Class M)

Dimple Spacing Accuracy: ±0.15mm

Compliant Standards:

OSHA 1910.22 (US) / EN ISO 14122-3 (EU) / AS 4586 (AU)

4. Material Specifications

Base Materials: Electro-Galvanized Steel (EN 10346)

316L Stainless Steel (ASTM A240)Aluminum 5052-H32 (AAMA 611)

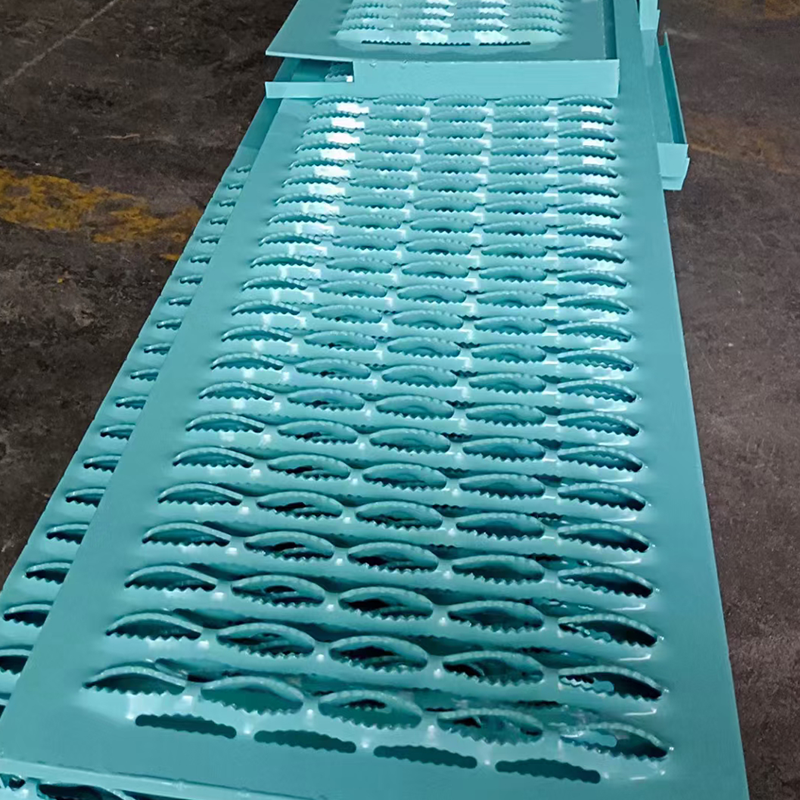

Surface Treatments: Powder coating (RAL/Pantone colors)

Hot-Dip Galvanizing (ISO 1461) / Epoxy Coating (60-80μm)

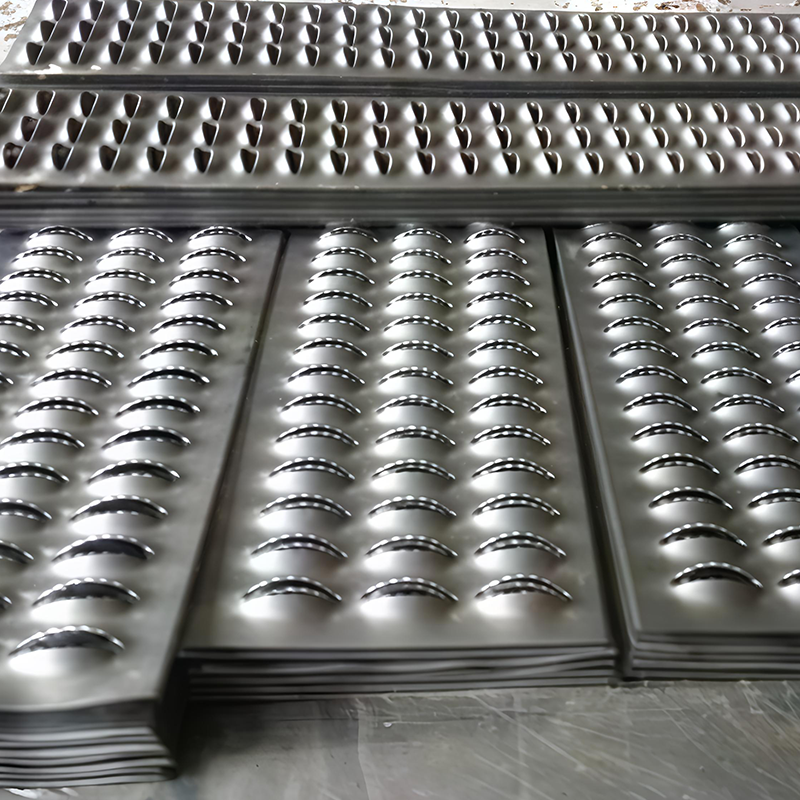

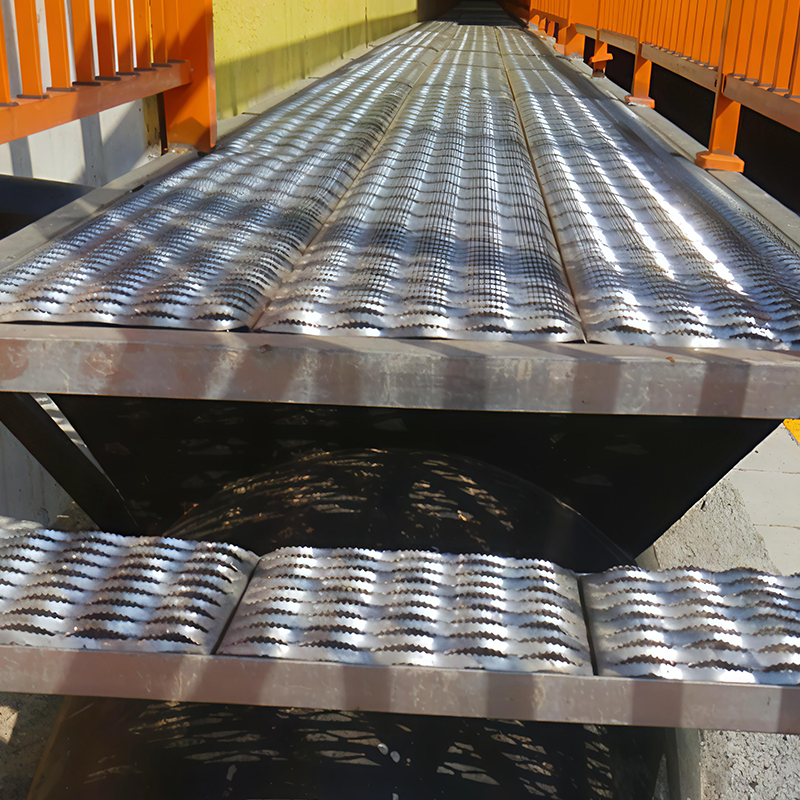

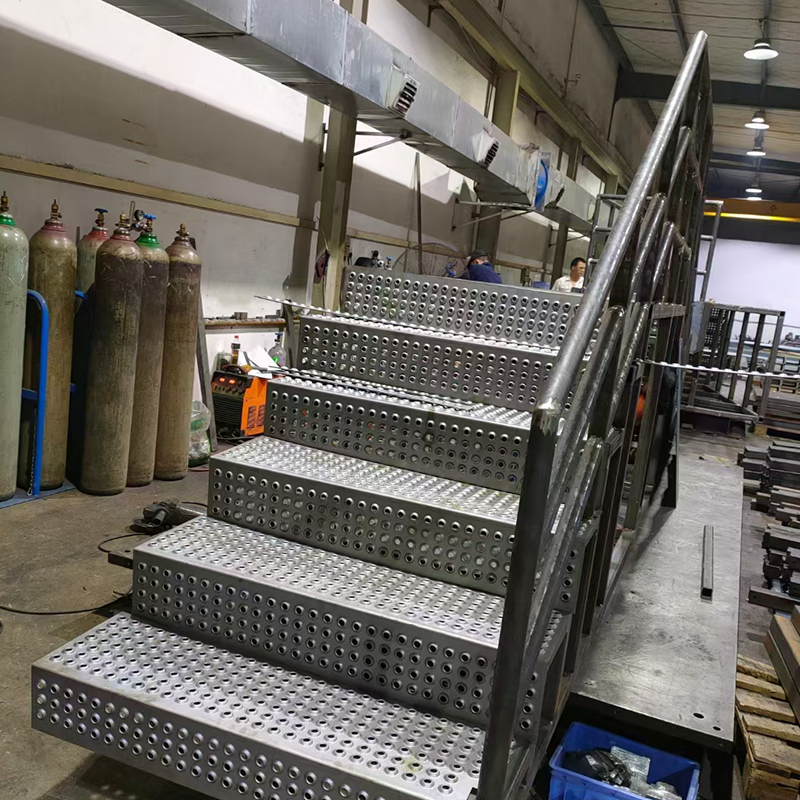

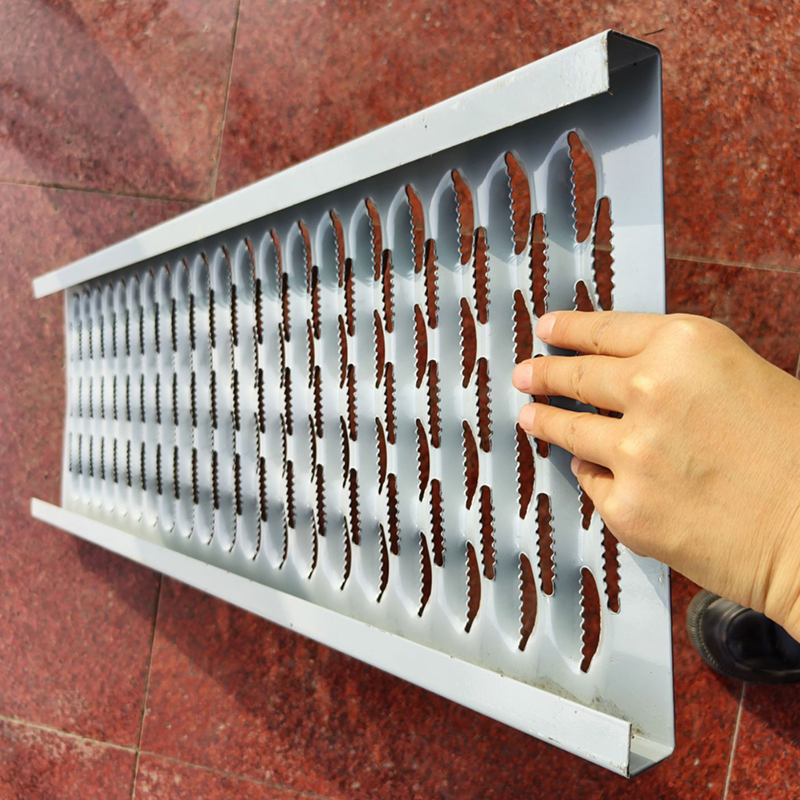

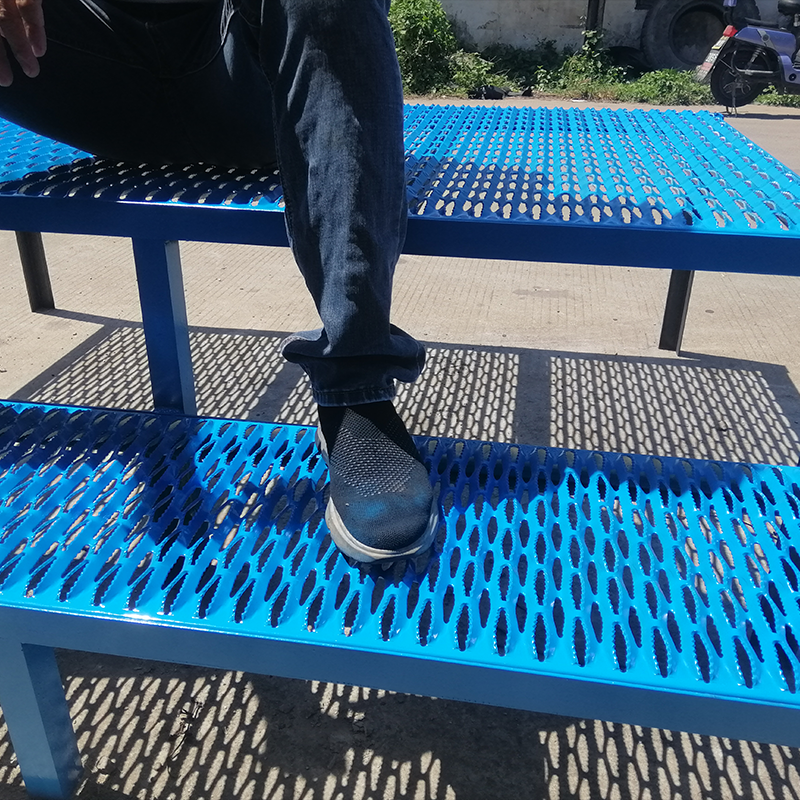

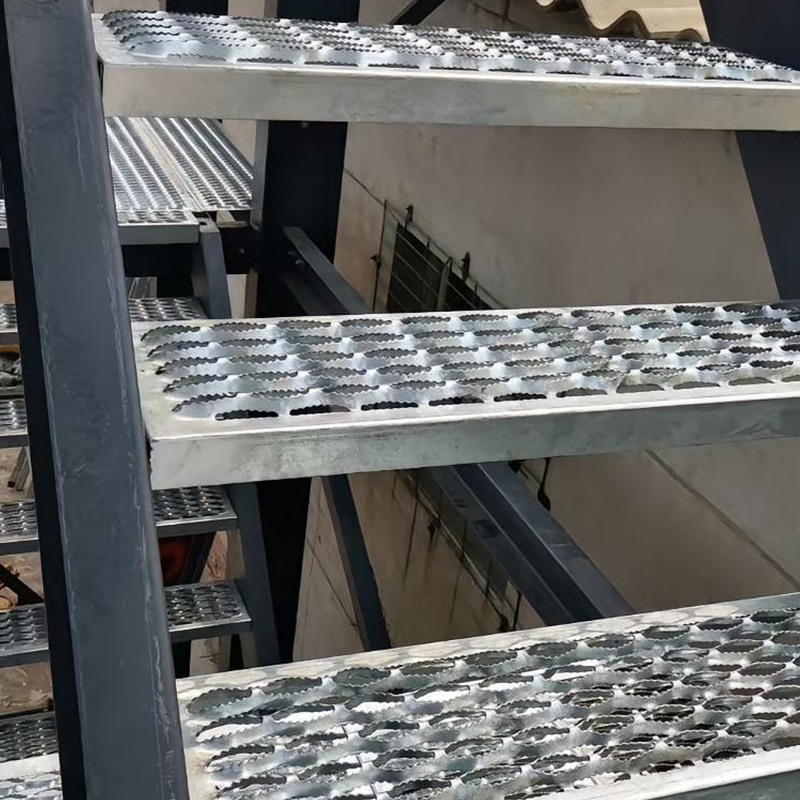

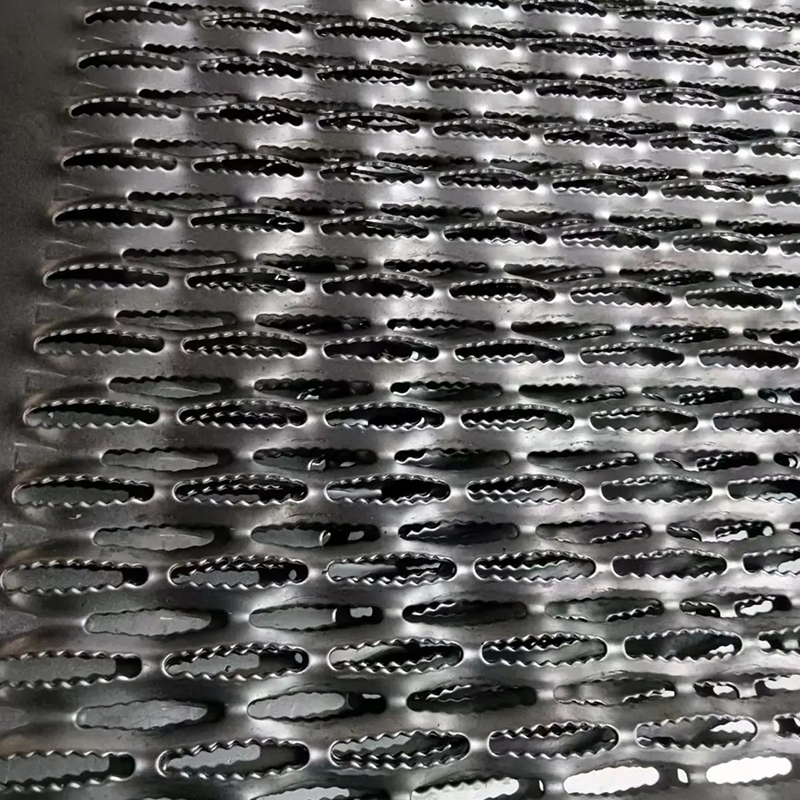

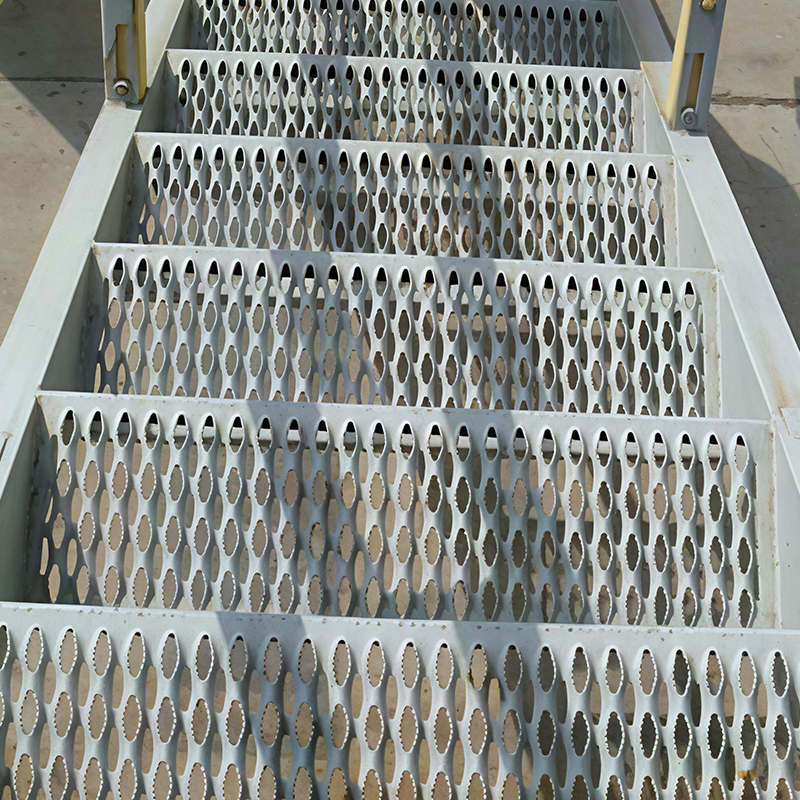

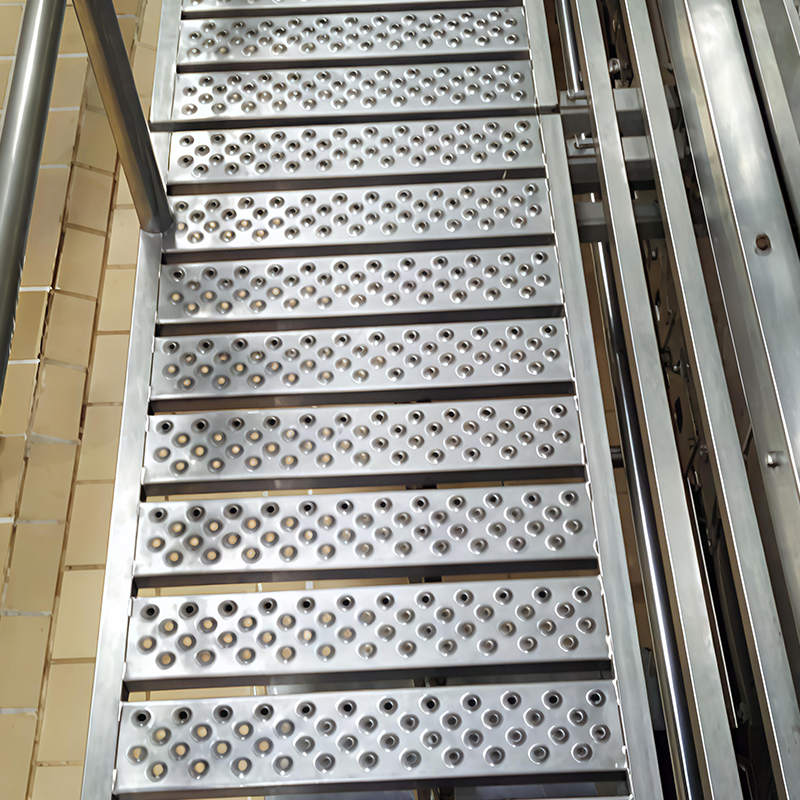

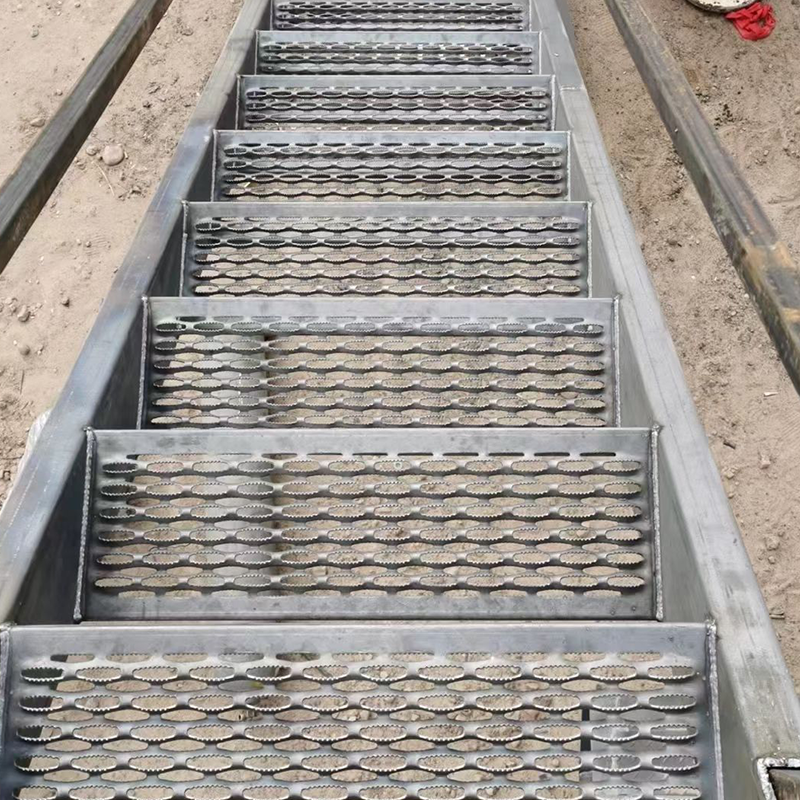

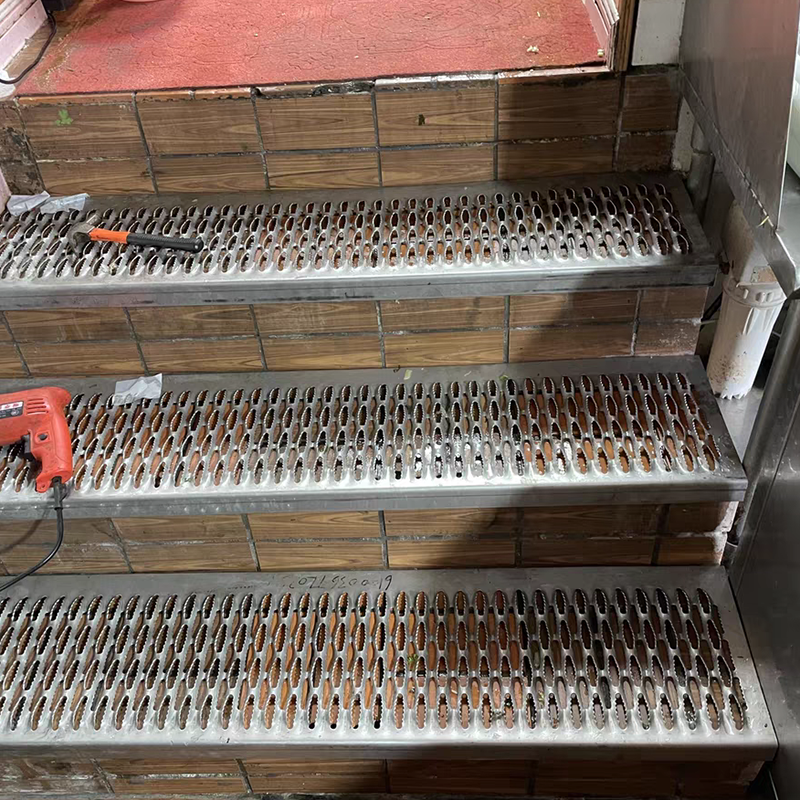

Crafted for ultimate safety and versatility, our Anti-slip Punched Plates redefine industrial flooring and surface solutions. Engineered with precision, each plate features a unique pattern of punched holes combined with textured surfaces, providing superior traction to prevent slips and falls even in wet, oily, or heavy-traffic environments. Made from high-grade stainless steel, galvanized steel, or aluminum, these plates offer exceptional corrosion resistance, ensuring long-lasting performance in harsh conditions. Ideal for factories, walkways, stair treads, and machinery platforms, our Anti-slip Punched Plates not only enhance safety but also facilitate efficient drainage and ventilation. With customizable hole sizes, shapes, and dimensions available, we can tailor the perfect solution to meet your specific project requirements. Prioritize safety without compromising on functionality—choose our Anti-slip Punched Plates for reliable, durable, and high-performance protection.
