Product Description:

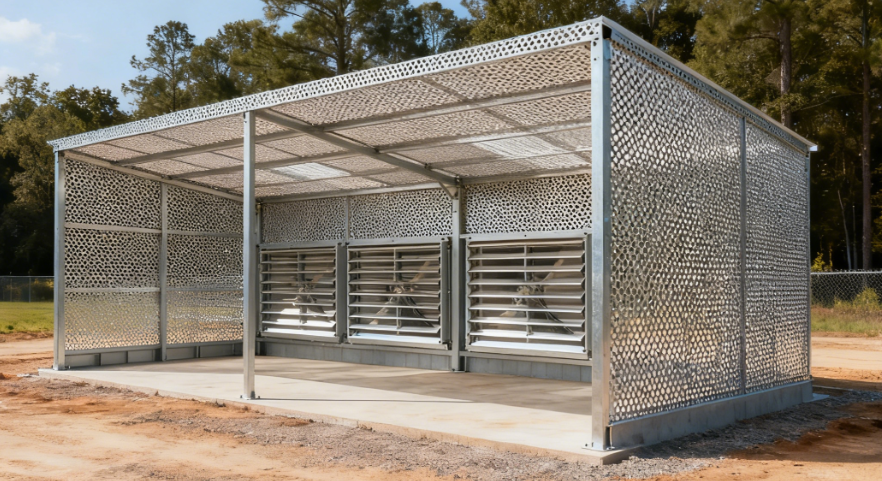

Jintong’s metal sunshade and low-output ventilation panels are designed to optimize thermal performance in semi-enclosed maintenance areas, service bays, and logistics hubs. These modular panels reduce solar heat gain, stabilize internal microclimates, and provide low-level airflow without relying on mechanical fans. Their aerodynamic vent geometry prevents dust ingress while maintaining safe and comfortable working conditions. Ideal for retrofits where conventional HVAC or high-velocity ventilation is not practical.

Product Attributes:

• Material: Aluminum alloy, powder-coated (2 mm thickness), corrosion-resistant

• Sunshade Panels: Micro-perforated outer surface, 32 % open area, blocks >70 % direct sunlight

• Ventilation Panels: Low-output elongated slot vents (18 mm), optimized for laminar airflow (0.4–0.6 m/s)

• Airflow Design: Buoyancy-assisted natural convection, thermal buffer cavity 60 mm behind panels

• Dust Control: Integrated mesh layer prevents particulate intrusion

• Energy Efficiency: Reduces fan operation time by up to 60 % and lowers radiant heat flux by ~12 %

• Installation: Modular clip-lock system for rapid retrofit on existing frames

• Applications: Maintenance bays, semi-enclosed service zones, logistics hubs, heavy equipment workshops

Performance Highlights:

• Surface temperature reduction up to 21 °C

• Relative humidity decreased by 9 %

• Laminar air velocity maintained at 0.45 m/s

• Maintenance intervals extended to six months

• Improved worker comfort and thermal safety
