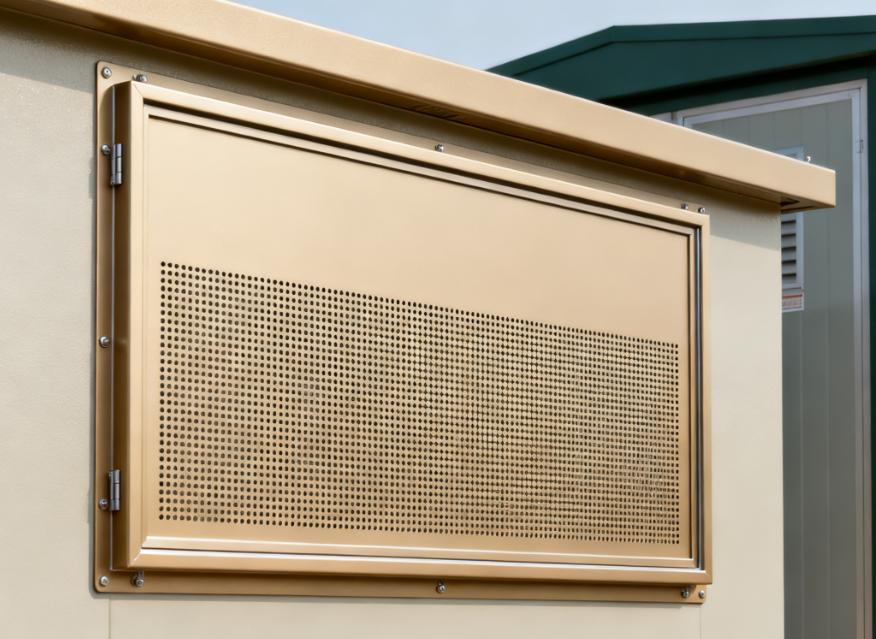

The Jintong Integrated Metal Sunshade and Filtered Vent System is a low-maintenance, high-performance cladding solution developed for remote technician shelters and sensitive equipment bunkers. Engineered for extreme heat and airborne particle exposure, it merges perforated aluminum shading fins, sealed ventilation modules, and reflective acoustic layers to regulate temperature, airflow, and structural lifespan—all without mechanical components.

✅ 6. 产品属性（Product Attributes）

• Material: High-strength aluminum alloy

• Finish: Powder-coated (UV and corrosion resistant)

• Sunshade Blade Length: 120 mm (extended fins)

• Vent Type: Filtered passive vent with anti-sand mesh

• Filter Standard: ISO 16890

• Flame Spread Rating: ASTM E84 compliant

• Mounting: Load-bearing clip system (ASCE dry-zone certified)

• Integrated Elements:

• Acoustic Perforated Panels (outer shell)

• Decorative Perforated Covers

• Anti-Slip Panels for access steps

• Tested Performance:

• Interior temp reduction: 6.1°C

• Filter clogging rate reduced by 58%

• Sound resonance reduction: documented by acoustic paneling

• Lower inverter fault frequency (passive airflow verified)

✅ 7. 产品描述（Product Description）

Built for deployment in high-dust, high-heat zones such as oilfields, border control stations, and off-grid technician outposts, this integrated metal sunshade and filtered vent system solves three core challenges: overheating, airborne particulate intrusion, and structural resonance. With fixed 120 mm aluminum fins for solar deflection and modular cavity vents lined with anti-sand mesh and baffle filters, it allows airflow while blocking contaminants. The system exceeds ISO 16890 dust filtration benchmarks and withstands dry-zone weather per ASCE standards. Decorative and acoustic perforated panels ensure visual coherence and noise mitigation, while the clip-on design supports fast, weld-free installation. Ideal for autonomous shelters requiring minimal monthly maintenance.
