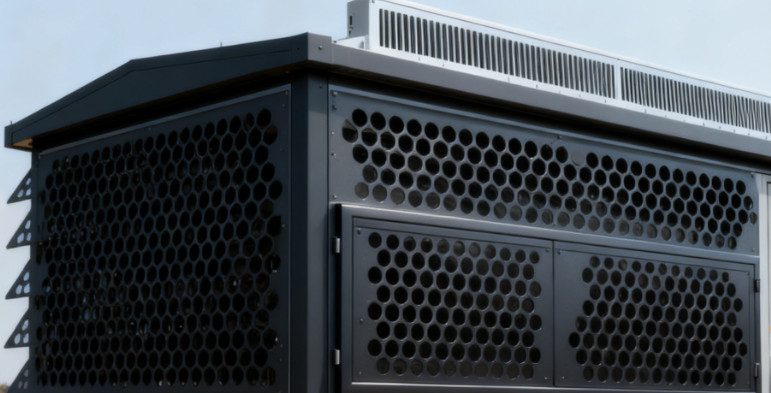

The Roof-Edge Enclosure System combines structural protection, passive cooling, and aesthetic integration for modern rooftops. Using horizontally mounted angled blades and precision vent slots, it allows controlled airflow, reduces surface temperature, and provides long-term shielding for HVAC and mechanical units—without the complexity of traditional parapet retrofits.

✅ 6. 产品属性（Product Attributes）

• Material: High-durability aluminum alloy

• Blade Size & Angle: 100 mm wide, angled at 45°

• Vent Slot Width: 4 mm, positioned between blades

• Finish: PVDF coating with corrosion-resistant return folds

• Assembly: Modular, field-bolted, maintenance-free

• Anchoring: ASCE 7 structural compliance

• Condensation Control: ISO 13788 compliant

• Wind Load Performance:

• ASTM E330 passed at 1.9 kPa test pressure

• Acoustic Control: ASA-guided damper integration

• Performance Benefits:

• 6.8°C HVAC surface temp reduction

• +23% roof membrane lifespan

• 0% water ingress

• No repainting after full summer exposure

• Improved dusk-hour visibility for technicians

✅ 7. 产品描述（Product Description）

Designed for exposed and high-load roof environments, this Roof-Edge Enclosure System uses a lightweight aluminum sunshade and vent structure to deliver critical protection and airflow at roof level. With 100 mm blades mounted at a 45° angle and integrated 4 mm vent slots, it enables passive cross-ventilation while shielding HVAC units from solar stress and particulate buildup. The modular PVDF-coated assembly resists corrosion, eliminates repainting needs, and passes wind resistance testing up to 1.9 kPa. Internal spacers and field-bolted brackets allow fast, weld-free installation. This system is ideal for factories, tech campuses, and civic infrastructure seeking reliable rooftop thermal control, mechanical concealment, and visual cohesion.
