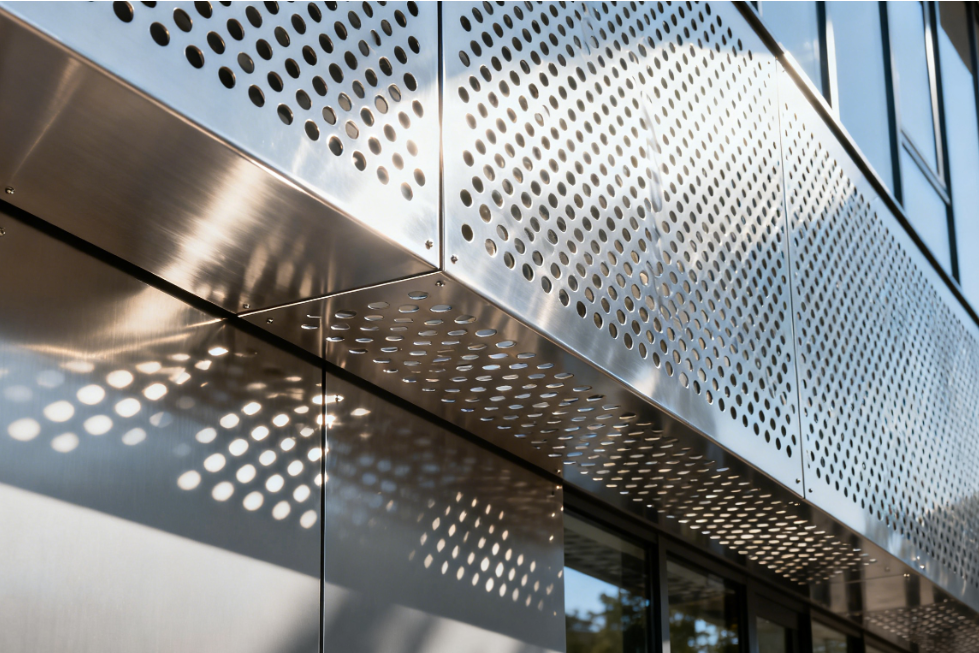

The Cross-Vent Compatible Wall System merges sun protection and airflow engineering into a modular ventilated façade ideal for high-traffic public structures. It passively regulates internal temperatures and moisture through horizontal ventilation and strategic shading—enhancing occupant comfort, reducing energy strain, and complying with international standards.

✅ 6. 产品属性（Product Attributes）

• Material: Marine-grade aluminum

• Finish: PVDF coating (UV- and corrosion-resistant)

• Ventilation Type: Micro-perforated horizontal vent bands

• Perforation Depth: Variable-depth based on airflow analysis

• Sunshade Design: Overhanging modular fins for solar load mitigation

• Integrated Panel Types:

• Acoustic Perforated Panels (sound & fire-rated core)

• Decorative Perforated Panels (entry zone design)

• Anti-Slip Panels (ramps and access zones)

• Thermal & Structural Compliance:

• ASTM E2634 – Wall insulation & resistance

• ISO 6946 – Thermal envelope performance

• ASCE Standards – Wind-load & structural design

• EPA IAQ – Indoor air quality ventilation benchmark

• Performance Metrics:

• +27% lateral airflow increase

• -4.2°C surface temperature reduction

• -22% HVAC strain

• 100% water ingress prevention (simulated)

• Verified comfort gains in Seville Metro project

✅ 7. 产品描述（Product Description）

Specifically developed for transit facilities and high-volume public structures in hot climates, the Cross-Vent Compatible Wall System offers a fully passive, modular solution for managing solar gain and interior air balance. The system combines micro-perforated aluminum ventilation bands with architectural sunshade fins to form a durable, energy-saving building skin. Internal cavity airflow is increased through carefully positioned vents, while external surfaces are protected from heat through overhanging blade structures. The panels are PVDF-coated for long-term exposure durability, and the system integrates acoustic and decorative cladding for both function and form. Successfully deployed at the Seville Metro Hub, this system demonstrates measurable benefits in thermal comfort, HVAC efficiency, and climate resilience—without the need for powered ventilation or complex maintenance.
