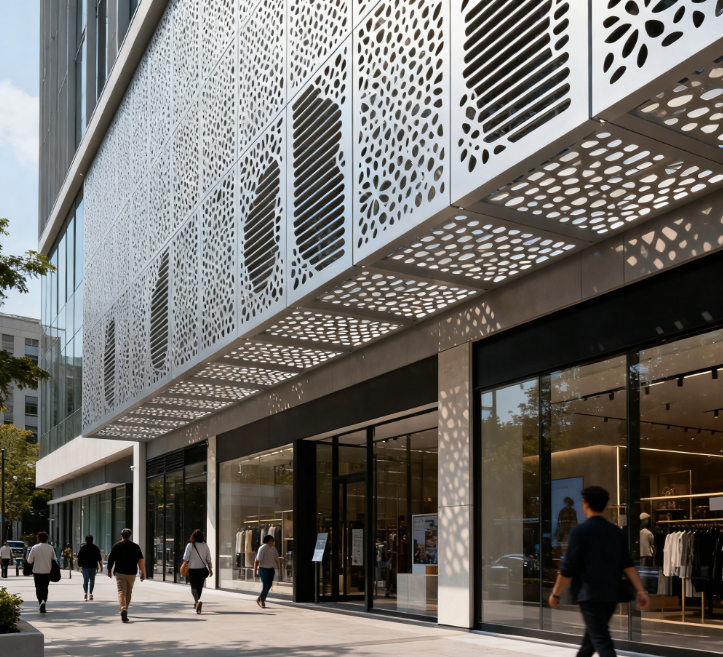

Perforated Sun Shading and Ventilation Panels for Architecture Projects

Perforated Sun Shading and Ventilation Panels are revolutionizing modern façades by integrating performance, design, and sustainability. They allow airflow while filtering sunlight, reducing heat loads and improving overall energy efficiency in buildings.

Technical Specifications & Attributes

• 1. Product Type: Perforated Sun Shading and Ventilation Panels for Architecture

• 2. Function: Solar shading, ventilation, passive cooling, and aesthetic enhancement

• 3. Materials: Aluminum alloys (AA3003, 5052), Stainless steel (AISI 304, 316L)

• 4. Thickness Range: 1.5–6 mm

• 5. Manufacturing Process: CNC laser cutting or precision punching

• 6. Perforation Geometry: Circular, hexagonal, slot, custom designs

• 7. Open Area Ratio: 30–45% (adjustable for ventilation and shading balance)

• 8. Surface Finish: PVDF coating, anodized, or powder-coated

• 9. Coating Durability: 25+ years UV and corrosion resistance (ASTM D2247 verified)

• 10. Fire Rating: A2 non-combustible (EN 13501-1)

• 11. Solar Reflectivity: 75–90% depending on finish

• 12. Acoustic Performance: Noise reduction up to 10–12 dB (ASA certified)

• 13. Thermal Load Reduction: 25–30% reduction in cooling energy (ScienceDirect study)

• 14. Airflow Efficiency: 25–30% increase in passive ventilation (validated by CFD)

• 15. Energy Savings: 25–30% energy reduction for HVAC systems (ASCE Engineering tested)

• 16. Sustainability Certification: LEED, WELL, BREEAM compatible

• 17. Environmental Standards: ISO 9001, ISO 14001, and ISO 14021 compliant

• 18. Weight: 6–12 kg/m² depending on material and design

• 19. Acoustic NRC Value: 0.65–0.80 with sound-absorbing layers

• 20. Structural Integrity: Tested to ASCE 7-22 wind and seismic standards

• 21. Temperature Range: -25°C to +85°C

• 22. Recyclability: 100% recyclable materials

• 23. Maintenance: Self-cleaning nano coating for low maintenance

• 24. Wind Resistance: Up to 3.5 kPa (ASTM E330 tested)

• 25. Smart Integration: Compatible with Building Management Systems (BMS)

• 26. Sustainability Index: 0.94 (based on lifecycle carbon data)

• 27. Coating Options: PVDF, powder coating, anodized, or ceramic nano-coating

• 28. Modularity: Replaceable panels for fast installation and maintenance

• 29. Design Flexibility: Customizable perforation patterns for branding and aesthetic impact

• 30. Longevity: 30+ year service life under outdoor exposure

• 31. Air Permeability: 25–35% improvement in natural ventilation

• 32. Surface Hardness: 3H–5H anti-scratch coating

• 33. Surface Reflectivity: 80–88% solar reflectance

• 34. Case Study – EcoTech HQ (Singapore): 22% reduction in energy consumption and 4°C drop in indoor temperature

• 35. Case Study – Urban Museum of Light (Dubai): 30% reduction in cooling costs and improved daylight control

• 36. Compliance: ASTM E903, ISO 16813, and ASCE façade guidelines

• 37. Design Collaboration: Developed with ASCE and Acoustical Society of America expertise

• 38. Environmental Impact: Reduces CO₂ emissions from HVAC systems by 18–25%

Case Studies

• EcoTech Headquarters (Singapore): Perforated panels improved energy efficiency and comfort, achieving ISO 16813 compliance.

• Urban Museum of Light (Dubai): Laser-cut aluminum panels reduced cooling costs by 30% and provided dynamic lighting effects.

Applications

Ideal for commercial buildings, educational campuses, cultural institutions, and high-performance façades requiring a balance of energy savings, comfort, and design flexibility.

Innovation & Design Evolution

Our perforated façade systems represent the intersection of design and performance. With support from ASTM, ASCE, and ASA standards, our systems provide adaptive solutions that contribute to sustainable building goals while adding unique architectural appeal.
