Product Description:

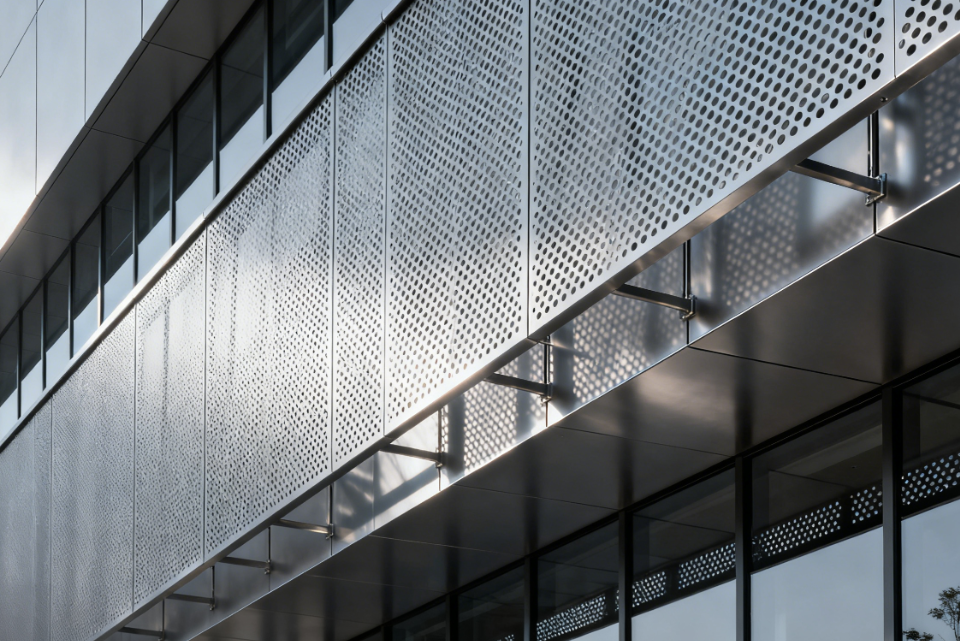

Jintong’s Off-site Metal Sunshade and Semi-Enclosed Vent System provides a passive climate-control solution for modular energy, telecom, and medical units deployed in remote or temporary locations. Designed for minimal maintenance and zero mechanical power dependency, the system combines perforated metal sunshade panels with semi-enclosed vent corridors. This creates a self-regulating thermal envelope, reducing internal temperatures, stabilizing humidity, and improving equipment lifespan while limiting dust and insect ingress. Its modular design ensures rapid assembly and relocation without structural modification.

Product Attributes:

• Material: Aluminum 6063-T6 with PVDF or powder coating

• Sunshade Panels: 2–3 mm thick, 34% open area micro-perforated aluminum

• Vent Panels: Semi-enclosed vertical louvers with internal mesh for dust/insect control, angled 22°

• Air Gap: 80 mm cavity for natural convection

• Airflow Performance: Laminar flow <0.4 m/s, enabling slow, balanced convection

• Temperature Control: Reduces internal heat by ~16–17°C in extreme conditions

• Relative Humidity: Maintains 55–60% under desert or tropical conditions

• Energy Savings: HVAC or auxiliary fan runtime reduced by ~48%

• Maintenance: Twice-yearly cleaning for vents, durable coating resists corrosion over 18+ months

• Installation: Modular clip-on brackets, 3–4 hours per unit assembly

• Applications: Telecom shelters, off-grid energy modules, mobile medical units, emergency response units
