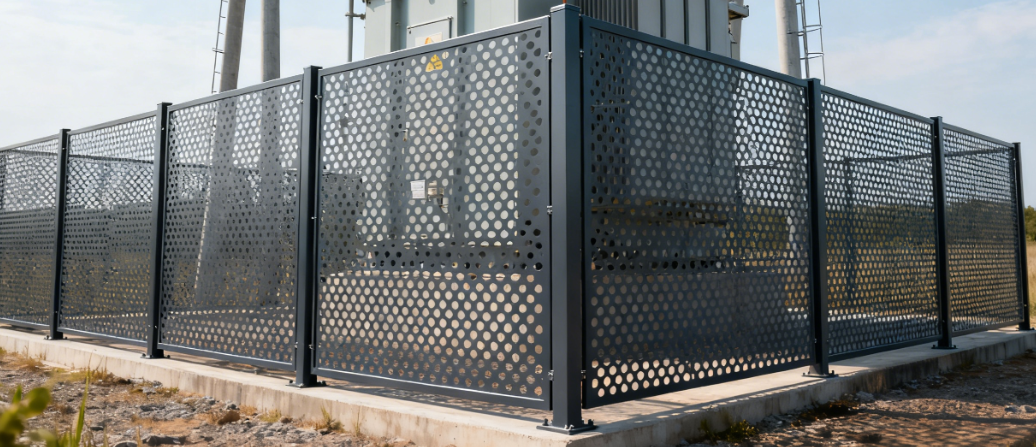

This industrial fencing system combines hot-dip galvanized steel panels with powder-coated finishes and a modular screw connector system for easy assembly, removal, and relocation. Panels are fabricated from carbon steel with zinc coating ≥85 µm, mounted using tamper-resistant stainless steel screws and clamp-fit connectors. Modular design allows rapid reconfiguration without welding, minimizing downtime and hot-work risks. Reinforced base rails protect against vehicle impact, while the powder-coated finish ensures corrosion resistance in harsh chemical, industrial, and outdoor environments.

Product Attributes

• Panel Material: Carbon steel, hot-dip galvanized per ASTM A123/A123M

• Panel Size: Custom modular sizes, typical 2.4 m × 3.0 m

• Finish: Zinc coating nominal 85 µm + polyester powder coat RAL 7016

• Connector System: Screw-type clamp-fit connectors, stainless grade A4, tamper-resistant

• Base Rail Protection: Reinforced rails for forklift and vehicle impact

• Flexibility: Modular panels for quick removal, relocation, and reconfiguration

• Durability: Corrosion-resistant zinc-steel finish suitable for chemical or humid industrial conditions

• Maintenance: Minimal; screw connectors allow easy replacement of individual panels

• Compliance: ASTM A123, ISO 9223, ASCE structural evaluation for industrial fencing

• Applications: Flexible storage yards, industrial staging areas, semi-permanent operational zones, logistics facilities
