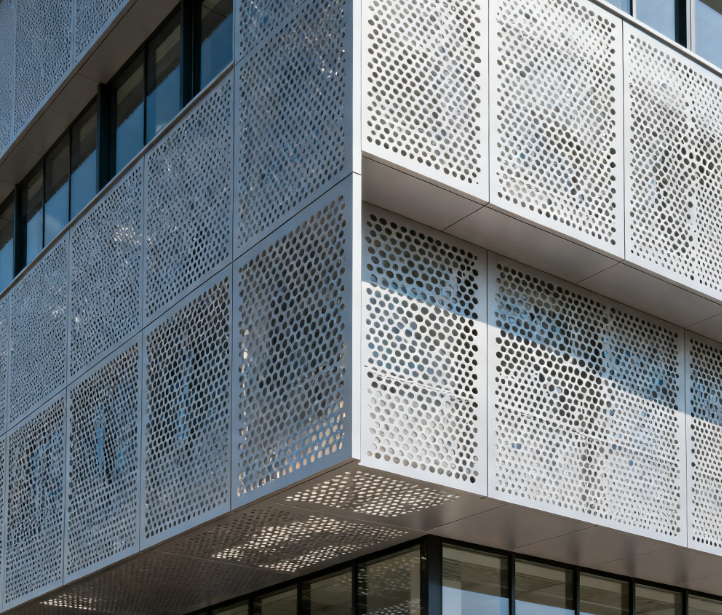

Adaptive Perforated Sun Shading and Ventilation Facades

Adaptive perforated façades represent a new generation of responsive architectural envelopes that integrate shading, ventilation, and aesthetics for high-performance buildings in hot climates.

Technical Specifications & Attributes

• 1. Product Type: Adaptive perforated façade system

• 2. Function: Solar shading, ventilation, and cooling efficiency

• 3. Design Principle: Responsive perforation geometry and kinetic panels

• 4. Material Options: Aluminum, stainless steel, and composite panels

• 5. Surface Finish: PVDF, ceramic nano-coating, or anodized finish

• 6. Perforation Ratio: Variable 20–45% (adaptive)

• 7. Perforation Shape: Round, hexagonal, or parametric

• 8. Panel Thickness: 2.5–5 mm

• 9. Density Modulation: Dynamic, controlled by solar intensity

• 10. Adaptive Mechanism: Micro-louvers, pivoting fins, or kinetic actuators

• 11. Smart Integration: Compatible with BMS and IoT sensors

• 12. Energy Savings: Up to 40% reduction in cooling load

• 13. Thermal Reduction: 5°C average indoor temperature improvement

• 14. Acoustic Performance: 12 dB noise reduction with membrane layer

• 15. Reflectivity: 80–90% solar reflection with nano-finishes

• 16. Ventilation Mode: Passive and active airflow channels

• 17. Operating Temperature Range: -10°C to 65°C

• 18. Control Type: Automated or manual override

• 19. Maintenance Cycle: Annual inspection per ASTM E631

• 20. Life Span: 30+ years with minimal degradation

• 21. Structural Frame: Modular aluminum extrusion system

• 22. Panel Size: Custom up to 1200x2400 mm

• 23. Weight: Approx. 8–15 kg/m² depending on material

• 24. Coefficient of Heat Transfer: 1.6–2.2 W/m²K

• 25. Environmental Standard: ISO 14021 certified recyclable materials

• 26. Fire Resistance: Class A2 (EN 13501-1)

• 27. Corrosion Resistance: High, suitable for desert environments

• 28. Cleaning System: Self-cleaning nano-surface

• 29. Solar Tracking System: Optional sensor-based adjustment

• 30. Sound Absorption Coefficient: NRC 0.65–0.8

• 31. Design Flexibility: Fully parametric digital fabrication

• 32. Standard Compliance: ASTM, ISO 16813, ASCE façade standards

• 33. Acoustic Certification: ASA compliant

• 34. Energy Model Verification: ISO 52016 validated

• 35. Control Interface: Web and mobile integration

• 36. Application Areas: Commercial, institutional, cultural, and residential façades

• 37. Suitable Climate: Hot and arid zones above 35°C

• 38. Installation Method: Curtain wall subframe or unitized system

• 39. Maintenance Access: Rear-mounted service openings

• 40. Sustainability Index: 0.9 (based on embodied carbon assessment)

• 41. Customization: Available with 3D printing and CNC cutting

• 42. Certification: LEED and BREEAM compatible

Use Cases

Ideal for desert towers, cultural centers, educational buildings, and high-performance green structures requiring thermal and acoustic control.

Case Studies

• Desert Innovation Tower (Abu Dhabi): 37% energy reduction and 5°C cooling improvement.

• Oasis Cultural Center (Riyadh): 42% energy gain and 25% comfort increase.

Maintenance & Longevity

Engineered for long-term performance with easy modular maintenance, dust-resistant coatings, and recyclable structure, ensuring sustainability and reliability in extreme climates.
