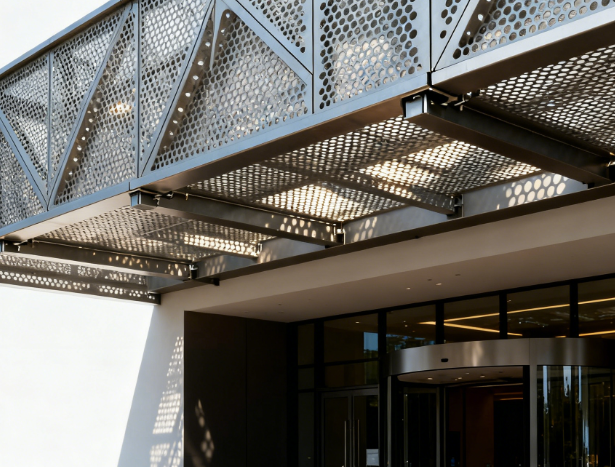

Perforated Sun Shading and Ventilation Panels with Custom Pattern for Architecture

These custom-patterned perforated panels redefine architectural design by blending artistic creativity with technical precision. Designed to deliver optimal shading, ventilation, and aesthetic distinction, they serve as both functional elements and visual statements for modern architecture.

Technical Specifications & Attributes

• 1. Product Type: Perforated sun shading and ventilation panels with custom pattern

• 2. Function: Solar shading, ventilation, acoustic control, and decorative façade design

• 3. Material Options: Aluminum, stainless steel, corten steel, or galvanized steel

• 4. Thickness Range: 2–5 mm

• 5. Manufacturing Process: High-precision CNC and laser cutting

• 6. Pattern Customization: Geometric, organic, cultural, or brand-inspired motifs

• 7. Surface Finishes: PVDF coating, anodized, powder-coated, or brushed

• 8. Coating Durability: UV-resistant, anti-fade up to 15 years

• 9. Perforation Ratio: 15–45% depending on design and airflow needs

• 10. Reflectivity: 70–90% for thermal efficiency

• 11. Airflow Efficiency: Increased by 25–30% through optimized patterning

• 12. Solar Heat Gain Reduction: Up to 35%

• 13. Energy Savings: 22–30% cooling load reduction in case studies

• 14. Sound Absorption: Up to 10 dB reduction with acoustic backing

• 15. Design Tolerance: ±0.3 mm precision

• 16. Fire Resistance: Class A2 (EN 13501-1)

• 17. Wind Load Resistance: ASCE façade compliance

• 18. Environmental Standards: ASTM and ISO 16813 compliant

• 19. Sustainability Certifications: LEED, WELL, and BREEAM compatible

• 20. Light Transmission: 10–40% depending on perforation density

• 21. Panel Dimensions: Custom up to 1500×3000 mm

• 22. Weight: 7–14 kg/m²

• 23. Maintenance Requirement: Minimal, dust-resistant coating

• 24. Expected Lifespan: 30+ years

• 25. Installation System: Subframe or unitized curtain wall compatible

• 26. Control System: Optional integration with automation sensors

• 27. Visual Impact: Custom LED backlighting available

• 28. Corrosion Resistance: Excellent — suitable for coastal and humid regions

• 29. Acoustic Optimization: ASA-certified configurations

• 30. Airflow Pattern Simulation: CFD-verified for optimal performance

• 31. Pattern Reproducibility: 100% digital accuracy

• 32. Modularity: Interchangeable panel system for easy maintenance

• 33. Recyclability: Over 95% recyclable aluminum or steel

• 34. Temperature Resistance: -20°C to +70°C

• 35. Color Options: Over 100 RAL and metallic finishes

• 36. Edge Treatment: Smooth CNC deburring for safety

• 37. Surface Texture: Matte, gloss, brushed, or sandblasted

• 38. Design Data Format: CAD, BIM, and Rhino parametric integration

• 39. Pattern Accuracy: ±0.1 mm per linear meter

• 40. Energy Modeling: ISO 52016 validated performance data

• 41. Integration with Architecture: Suitable for façades, balustrades, canopies, and sunbreakers

• 42. Custom Branding: Logo or thematic perforation available

Case Studies

• The Green Tower, Singapore: 22% energy reduction and 40% solar coverage with custom tropical foliage pattern.

• Luxury Retail, Milan: Renaissance-inspired perforation with LED illumination, enhancing brand visibility and design prestige.

Innovation & Future Vision

Our research team collaborates with leading architects and institutions to advance façade intelligence — integrating sensors, acoustics, and adaptive design for responsive architecture that breathes, communicates, and inspires.

Applications

Ideal for commercial towers, museums, cultural centers, retail façades, and urban buildings requiring sun control, ventilation, and artistic expression.
