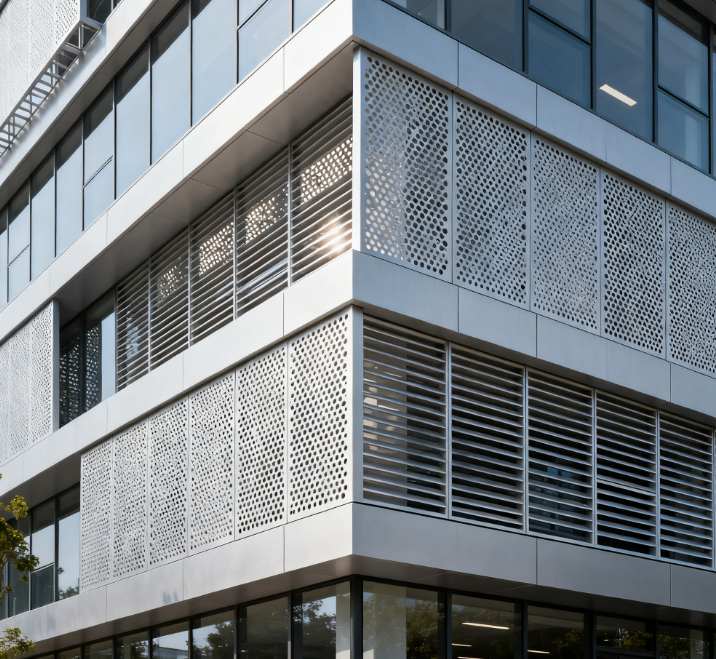

Perforated Sun Shading and Ventilation Panels for Hot Climate Regions Buildings

These perforated sun shading and ventilation panels offer advanced performance in high-temperature and high-solar-exposure environments. Acting as breathable architectural skins, they reduce solar gain, enhance airflow, and deliver long-term durability under harsh climatic conditions.

Technical Specifications & Attributes

• 1. Product Type: Perforated metal façade panels for sun shading and ventilation

• 2. Function: Reduce solar gain, improve natural airflow, and protect against heat

• 3. Material Options: Aluminum, stainless steel, galvanized steel, corten steel

• 4. Panel Thickness: 2–4 mm (customizable)

• 5. Perforation Shape: Round, square, hexagonal, or custom pattern

• 6. Perforation Ratio: 15–45% open area for optimal ventilation

• 7. Manufacturing Method: CNC punching and laser cutting

• 8. Surface Finish: PVDF, anodized, or powder coating

• 9. UV Resistance: 15-year tested coating durability

• 10. Solar Reflection Index: 70–85%

• 11. Airflow Efficiency: Increases ventilation rate by up to 25%

• 12. Energy Efficiency: 30–35% reduction in cooling energy demand

• 13. Heat Reduction: Façade surface temperature drops by up to 14°C

• 14. Acoustic Performance: Optional ASA-approved sound-absorbing configuration

• 15. Wind Load Compliance: ASCE façade engineering certified

• 16. Dust Control: Reduces infiltration in desert climates

• 17. Fire Rating: Class A2, non-combustible

• 18. Maintenance: Minimal; self-cleaning nano-coating available

• 19. Installation Type: Curtain wall subframe, stand-off system, or retrofit mount

• 20. Temperature Range: -10°C to +70°C

• 21. Air Permeability: Adjustable by design geometry

• 22. Weight: 7–12 kg/m² depending on metal type

• 23. Design Lifespan: 30+ years

• 24. Surface Hardness: 3H–5H abrasion resistant coating

• 25. Environmental Compliance: ISO 14021 recyclable materials

• 26. Solar Heat Gain Coefficient (SHGC): 0.25–0.4

• 27. Cooling Load Reduction: Up to 35% in controlled studies

• 28. Ventilation Type: Passive cross-ventilation and stack effect

• 29. Color Range: Over 100 RAL and metallic options

• 30. Corrosion Resistance: Excellent, ASTM B117 salt-spray tested

• 31. Structural Frame: Extruded aluminum profiles with concealed fixings

• 32. Acoustic NRC Value: 0.6–0.75 (with membrane)

• 33. Coating Type: PVDF / fluorocarbon / super durable polyester

• 34. Certification: ASTM, ISO 16813, and ASCE façade standards

• 35. Case Study – Dubai Resort: 35% energy savings, improved comfort, and recognition by Architectural Digest

• 36. Case Study – Oman Factory: 28% temperature reduction and 0 repainting cost after 2 years

• 37. Pattern Design: Regional motifs and cultural aesthetics possible

• 38. CNC Accuracy: ±0.3 mm tolerance

• 39. Custom Options: Brand logos, calligraphic designs, or 3D perforations

• 40. Integration: Compatible with decorative, acoustic, or anti-slip perforated panels

• 41. Applications: Hospitality, commercial, industrial, and institutional buildings

• 42. Sustainability Index: 0.92 (LEED-contributing component)

Case Studies

• Hospitality Project, Dubai: Energy use reduced by 35%, glare eliminated, improved occupant comfort.

• Industrial Facility, Oman: 28% temperature drop, maintenance-free coating after two years.

Advantages

• Reduces cooling energy demand
• Enables passive ventilation
• Minimizes glare and dust entry
• Customizable design aesthetic
• Long lifespan and easy maintenance

Application Areas

Perfect for desert resorts, office towers, factories, universities, and sustainable public buildings across hot climate regions.

Certifications & Standards

Tested under ASTM, ISO 16813, and ASCE façade guidelines. Supports LEED and BREEAM sustainability credits.
