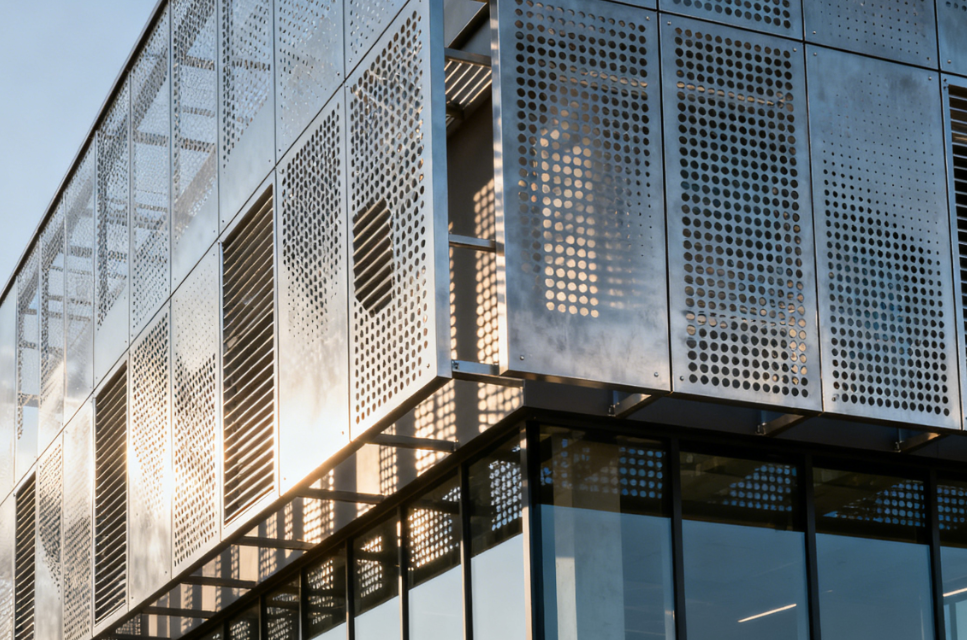

Perforated Sun Shading and Ventilation Panels with Custom Pattern for Architecture

Custom Pattern Perforated Panels bring a new level of architectural creativity and sustainability. Each design integrates aesthetics and function, optimizing airflow, shading, and acoustic performance while showcasing personalized visual identity. Perfect for museums, offices, airports, and public buildings.

Technical Specifications & Attributes

• 1. Product Type: Custom Pattern Perforated Sun Shading and Ventilation Panels

• 2. Function: Solar shading, natural ventilation, light modulation, and design customization

• 3. Material Options: Aluminum, stainless steel, galvanized steel

• 4. Thickness Range: 2–5 mm

• 5. Manufacturing Method: High-precision laser cutting and CNC punching

• 6. Pattern Design: Geometric, floral, abstract, cultural, or customized branding patterns

• 7. Perforation Ratio: 15–45% (adaptive to airflow and shading needs)

• 8. Surface Finish: PVDF coating, anodized, or powder coating

• 9. UV Resistance: 15+ years of color stability (tested under ASTM D2244)

• 10. Solar Reflectivity: 70–85% for energy efficiency

• 11. Heat Reduction: Up to 25% lower solar heat gain

• 12. Daylight Control: 30% improvement in light distribution (ScienceDirect verified)

• 13. Airflow Efficiency: 20–30% increase with optimized perforation geometry

• 14. Acoustic Performance: Up to 10 dB noise reduction with acoustic backing

• 15. Structural Integrity: ASCE-compliant for wind load and façade safety

• 16. Coating Type: PVDF / fluorocarbon / super durable polyester

• 17. Fire Resistance: Class A2, EN 13501-1 compliant

• 18. Panel Dimensions: Custom up to 1500×3000 mm

• 19. Weight: 8–15 kg/m² depending on material

• 20. Temperature Range: -20°C to +70°C

• 21. Wind Load Resistance: Up to 2.5 kPa per ASTM E330

• 22. Installation Method: Unitized curtain wall or subframe system

• 23. Corrosion Resistance: Excellent (ASTM B117 salt-spray tested)

• 24. Sustainability Certification: LEED, WELL, and BREEAM compatible

• 25. Environmental Standards: ISO 9001, ISO 14001 certified

• 26. Durability: 30+ year service life with minimal maintenance

• 27. Energy Savings: Up to 25% reduction in HVAC consumption

• 28. Light Transmission: 15–40% adjustable by pattern

• 29. Acoustic NRC Value: 0.6–0.75 (optional sound layer)

• 30. Design Accuracy: ±0.3 mm per panel

• 31. Edge Treatment: Safe, deburred, CNC-finished edges

• 32. Visual Customization: Optional LED backlighting for night aesthetics

• 33. Color Options: Over 100 RAL and metallic finishes

• 34. Coating Hardness: 3H–5H anti-scratch layer

• 35. Maintenance: Self-cleaning nano-surface coating

• 36. Sustainability Index: 0.93 (based on embodied carbon score)

• 37. Recyclability: 95% recyclable metal content

• 38. Project Compatibility: Museums, corporate buildings, retail façades, airports, and public art structures

• 39. Case Study – Tokyo Art Museum: 22% heat reduction, recognized by Architectural Digest and Springer

• 40. Case Study – Berlin Office Campus: 20% energy savings, 28% better light distribution

• 41. Smart Integration: Sensor-based shading control (optional)

• 42. Collaborative Design: Architect-engineer integrated R&D support

Case Studies

• Art Museum, Tokyo: Wave-inspired patterns created a dynamic façade and reduced indoor heat by 22%.

• Corporate Campus, Berlin: Abstract linear geometry improved light balance and lowered energy use by 20%.

Applications

Ideal for museums, corporate headquarters, public pavilions, universities, and airports seeking unique design language combined with environmental performance.

Innovation & Collaboration

Our R&D team collaborates with global architects and engineers under ASCE and ASA guidance to deliver high-precision perforated systems that merge design creativity, structural reliability, and environmental responsibility.
