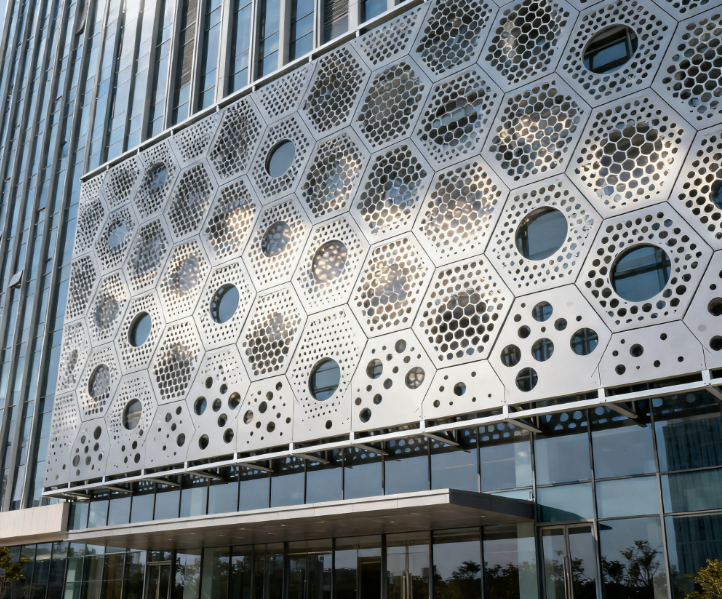

Aluminum Laser Cut Perforated Sun Shading and Ventilation Panels for Exterior Facades

Laser-cut perforated panels represent the fusion of precision, performance, and beauty in architectural design. Fabricated from premium aluminum alloys, they redefine façade systems by combining solar shading, ventilation, and decorative aesthetics in one integrated solution.

Technical Specifications & Attributes

• 1. Product Type: Aluminum Laser Cut Perforated Sun Shading and Ventilation Panels

• 2. Function: Solar shading, ventilation, visual enhancement, and energy efficiency

• 3. Material: High-grade Aluminum (AA3003 / AA5052 / 6061-T6)

• 4. Panel Thickness: 2.0 – 5.0 mm

• 5. Manufacturing Process: CNC laser cutting and precision forming

• 6. Perforation Design: Custom geometric, cultural, organic, or abstract patterns

• 7. Surface Finish: PVDF coating, anodized, or powder coating

• 8. Coating Durability: UV and corrosion resistant up to 25 years (ASTM D2247 tested)

• 9. Weight: 7–12 kg/m² (depending on design)

• 10. Solar Reflectance: 75–85%

• 11. Perforation Ratio: 15–45% open area (customizable)

• 12. Energy Efficiency: Reduces HVAC loads by 20–35%

• 13. Heat Reduction: 10–15°C lower façade temperature

• 14. Ventilation Efficiency: Improves natural airflow by 25%

• 15. Acoustic Performance: 8–12 dB noise reduction with membrane backing

• 16. Fire Rating: Class A2, EN 13501-1 compliant

• 17. Corrosion Resistance: Excellent (ISO 9227 salt-spray test certified)

• 18. Wind Load Capacity: ASCE 7-22 compliant, up to 2.8 kPa

• 19. Environmental Certification: LEED, WELL, and BREEAM compatible

• 20. Sustainability Index: 0.95 (based on embodied energy assessment)

• 21. Recyclability: 100% recyclable aluminum

• 22. Surface Hardness: 3H–5H anti-scratch coating

• 23. Thermal Expansion: 2.3 × 10⁻⁵ / °C (linear)

• 24. Acoustic NRC Value: 0.6–0.8 with internal absorption layer

• 25. Temperature Range: -25°C to +80°C

• 26. Structural Frame: Aluminum subframe with concealed fixings

• 27. Maintenance: Self-cleaning nano-surface, annual inspection

• 28. Installation System: Curtain wall integration or modular substructure

• 29. Customization: Parametric design, 3D perforation gradients, logo integration

• 30. Design Accuracy: ±0.2 mm CNC precision

• 31. Coating Options: PVDF, Anodized, Powder-coated, or Ceramic layer

• 32. Color Range: Over 120 RAL and metallic shades

• 33. Fireproofing: Non-combustible, Class A2 (EN 13501-1)

• 34. Structural Life Expectancy: 30+ years

• 35. Environmental Standards: ASTM, ISO 9001, ISO 14001 compliant

• 36. Acoustic Certification: ASA-approved design

• 37. Solar Heat Gain Coefficient (SHGC): 0.25–0.35 depending on pattern

• 38. Case Study – Abu Dhabi Cultural Center: 28% energy savings, 15% better ventilation

• 39. Case Study – Kuala Lumpur Office Building: 20% energy savings, 1-year ROI improvement

• 40. Smart Integration: IoT-ready façade monitoring systems (optional)

• 41. Compatible Systems: Perforated Sunshade Ventilate & Acoustic Panels

• 42. Aesthetic Effect: Laser-cut detailing for cultural and modern design expression

Case Studies

• Abu Dhabi Cultural Center: Islamic-inspired geometry achieved 28% cooling cost reduction and enhanced ventilation.

• Kuala Lumpur Office Campus: Laser-cut upgrade improved façade aesthetics and energy efficiency by 20%.

Applications

Ideal for exterior façades of commercial buildings, airports, universities, museums, and hotels requiring modern aesthetics and sustainable performance.

Innovation & Future Direction

Our collaboration with ASCE and Acoustical Society of America continues to advance façade performance through laser precision, data modeling, and acoustic-thermal optimization.
