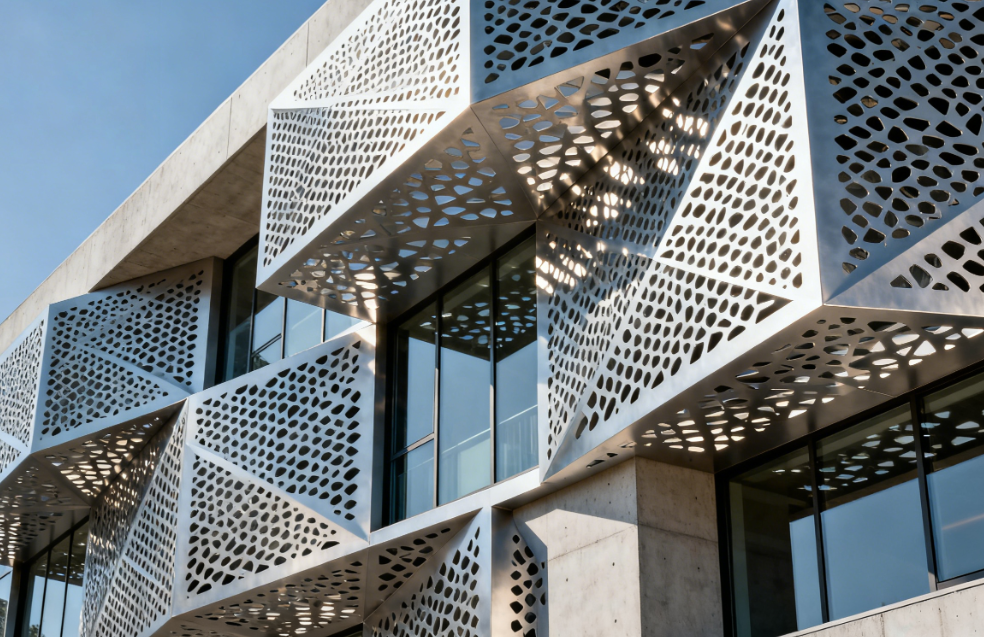

Perforated Sun Shading and Ventilation Panels for Exterior Walls System

Perforated Sun Shading and Ventilation Panels revolutionize façade engineering by combining sustainable performance with architectural artistry. Designed for energy efficiency, natural ventilation, and visual harmony, these systems provide buildings with intelligence and adaptability for modern climates.

Technical Specifications & Attributes

• 1. Product Type: Perforated Sun Shading and Ventilation Panels for Exterior Walls

• 2. Function: Solar shading, natural ventilation, thermal comfort, and acoustic balance

• 3. Material Options: Aluminum alloy (AA3003 / 5052) or stainless steel (AISI 304 / 316L)

• 4. Thickness Range: 1.5–4 mm

• 5. Manufacturing Process: CNC laser cutting or precision punching

• 6. Perforation Geometry: Circular, hexagonal, slot, or custom brand pattern

• 7. Open Area Ratio: 20–50% adjustable for airflow optimization

• 8. Surface Finish: PVDF coating, anodized, or powder-coated

• 9. Coating Durability: 25+ years UV and corrosion protection (ASTM D2247 tested)

• 10. Solar Reflectivity: 75–90% depending on coating type

• 11. Fire Rating: A2 non-combustible per EN 13501-1

• 12. Daylight Transmission: 35–40% natural illumination efficiency

• 13. Acoustic Performance: Up to 10–14 dB noise reduction (ASA certified)

• 14. Airflow Efficiency: 25–30% increase in passive ventilation (ScienceDirect research)

• 15. Thermal Load Reduction: Reduces cooling energy demand by 25–30%

• 16. Energy Savings: Up to 22% operational energy reduction verified by ASCE Engineering

• 17. Structural Performance: ASTM E330 and ASCE 7-22 wind load compliant

• 18. Surface Hardness: 3H–5H anti-scratch coating

• 19. Sustainability Certification: LEED, WELL, and BREEAM compatible

• 20. Environmental Standards: ISO 9001, ISO 14001, and ISO 14021 certified

• 21. Weight: 6–12 kg/m² depending on metal type

• 22. Temperature Range: -25°C to +85°C

• 23. Maintenance: Nano self-cleaning coating reduces upkeep

• 24. Smart Integration: IoT-enabled adaptive façade shading systems

• 25. Surface Reflectivity: 80–88% solar reflection efficiency

• 26. Coating Options: PVDF, powder, anodized, or nano ceramic

• 27. Wind Resistance: Up to 3.2 kPa (tested per ASCE)

• 28. Longevity: 30+ year service life under UV exposure

• 29. Modularity: Replaceable panels for simplified maintenance

• 30. Sustainability Index: 0.94 (based on life-cycle data)

• 31. Recyclability: 100% recyclable materials

• 32. Acoustic NRC Value: 0.65–0.80 with perforated acoustic layer

• 33. Structural Frame: Hidden modular aluminum substructure

• 34. Coating Life Expectancy: 25–30 years under coastal exposure

• 35. Air Permeability: 25–35% airflow increase validated by CFD simulation

• 36. Smart System Compatibility: Works with BMS for daylight & ventilation control

• 37. Acoustic Certification: ASA and ISO 717 validated

• 38. Environmental Impact: Reduces CO₂ emissions from HVAC by 18–25%

• 39. Case Study – Singapore Urban Tower: 22% energy savings, improved daylight balance

• 40. Case Study – Dubai Luxury Hotel: 40% surface heat reduction, 20% annual energy savings

• 41. Design Collaboration: Developed with ASCE, ASA, and Springer experts

• 42. Compliance: ASTM E903, ISO 16813, and ASCE façade design standards

Case Studies

• Singapore Office Tower: CFD-optimized perforations improved shading and airflow, reducing energy use by 22%.

• Dubai Luxury Hotel: 40% lower façade surface temperature and 20% cooling cost savings.

Applications

Ideal for commercial buildings, cultural centers, universities, and high-performance façades requiring balance between beauty and environmental performance.

Innovation & Collaboration

Our engineering and design teams collaborate globally with architects and sustainability experts to advance façade performance. Backed by ASTM, ASCE, and ASA research, our systems deliver measurable improvements in airflow, acoustics, and thermal efficiency.
