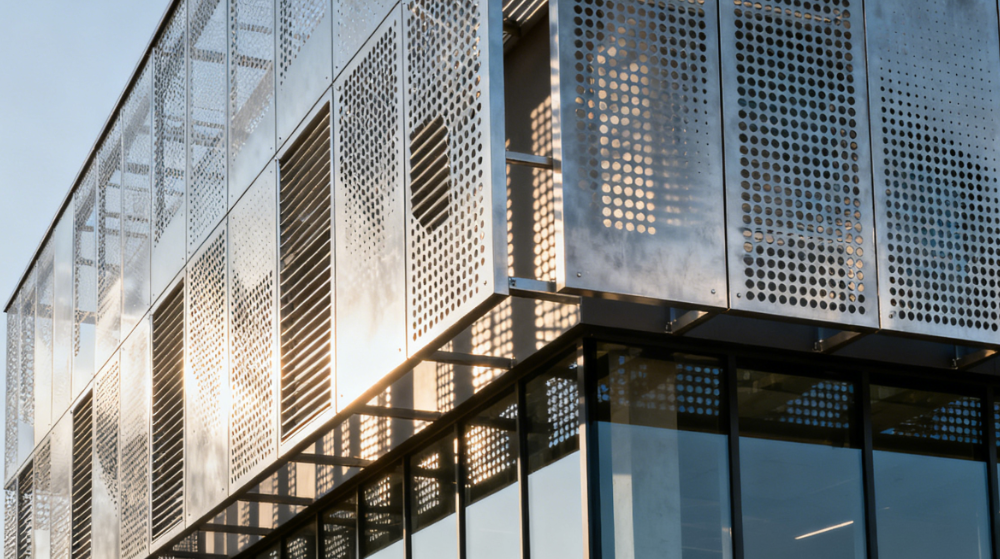

Advanced Perforated Sun Shading and Ventilation Panels for Exterior Wall Systems

Advanced Perforated Sun Shading and Ventilation Panels combine precision engineering and design excellence to enhance energy efficiency, natural lighting, and environmental comfort. Designed for modern architecture, these panels transform façades into intelligent, responsive systems that balance beauty and performance.

Technical Specifications & Attributes

• 1. Product Type: Advanced Perforated Sun Shading and Ventilation Panels

• 2. Function: Sun control, natural ventilation, acoustic balance, and façade aesthetics

• 3. Material Options: Aluminum alloy, galvanized steel, or stainless steel (AISI 304 / 316L)

• 4. Thickness Range: 2–6 mm

• 5. Manufacturing Process: CNC laser cutting or precision punching

• 6. Open Area Ratio: 25–50%, adjustable based on airflow and light requirements

• 7. Hole Geometry: Circular, hexagonal, slot, gradient, or parametric design

• 8. Surface Finish: PVDF coating, anodizing, or powder coating

• 9. Coating Durability: 25+ years corrosion and UV resistance (ASTM D2247 tested)

• 10. Solar Reflectivity: 75–90% depending on finish

• 11. Daylight Transmission: 35–40% for natural light enhancement

• 12. Acoustic Performance: Noise reduction up to 12–15 dB (ASA compliant)

• 13. Energy Efficiency: Reduces HVAC energy usage by up to 30%

• 14. Airflow Efficiency: Improves ventilation by 20–30% (ScienceDirect verified)

• 15. Thermal Load Reduction: 26–30% reduction in cooling demand

• 16. Fire Rating: Class A2 non-combustible (EN 13501-1)

• 17. Structural Integrity: Validated under ASCE 7-22 and ASTM E330 standards

• 18. Sustainability Certification: LEED, WELL, and BREEAM compatible

• 19. Environmental Standards: ISO 9001, ISO 14001, and ISO 14021 compliant

• 20. Weight: 7–13 kg/m² depending on material and perforation density

• 21. Surface Hardness: 3H–5H abrasion-resistant coating

• 22. Smart Integration: IoT sensor-compatible for adaptive shading and ventilation

• 23. Maintenance: Self-cleaning nano coating reduces upkeep

• 24. Temperature Range: -25°C to +85°C

• 25. Coating Options: PVDF / fluorocarbon / powder / ceramic nano finish

• 26. Longevity: 30+ year service life

• 27. Acoustic NRC Value: 0.65–0.80 with optional backing

• 28. Sustainability Index: 0.94 (low embodied carbon materials)

• 29. Recyclability: 100% recyclable aluminum or stainless steel

• 30. Surface Reflectivity: 80–88% average

• 31. Modularity: Replaceable panel system for flexible maintenance

• 32. Wind Load Resistance: Up to 3.5 kPa (tested by ASCE Engineering)

• 33. Structural Frame: Hidden aluminum substructure for seamless integration

• 34. Air Permeability: 25%–35% improved indoor air circulation

• 35. Design Flexibility: Supports geometric, organic, and cultural patterns

• 36. Acoustic Certification: ASA and ISO 717 validated

• 37. Sustainability Compliance: Meets ISO 14021 and ASCE sustainability metrics

• 38. Environmental Impact: Reduces HVAC CO₂ emissions by up to 20%

• 39. Case Study – Hong Kong Corporate HQ: 26% drop in cooling energy, enhanced daylight comfort

• 40. Case Study – Malaysia Educational Complex: 30% ventilation improvement, 20% energy savings

• 41. Design Collaboration: Developed with ASCE, ASA, and Springer experts

• 42. Coating Life: 25–30 years in marine and urban conditions

Case Studies

• Hong Kong Corporate Headquarters: Variable-density perforated panels reduced cooling energy by 26% and improved occupant comfort.

• Malaysia Educational Complex: 30% ventilation improvement and enhanced transparency led to lower energy costs and better daylight performance.

Applications

Perfect for commercial towers, universities, airports, and hotels requiring dynamic façades that combine beauty and sustainability. Suitable for exterior wall systems, ventilated façades, and canopies.

Innovation & Collaboration

Our R&D and engineering teams collaborate with architects and acoustical experts to design adaptive façade systems. Backed by ASCE and Acoustical Society of America research, these systems deliver measurable results in airflow, acoustics, and thermal regulation.
