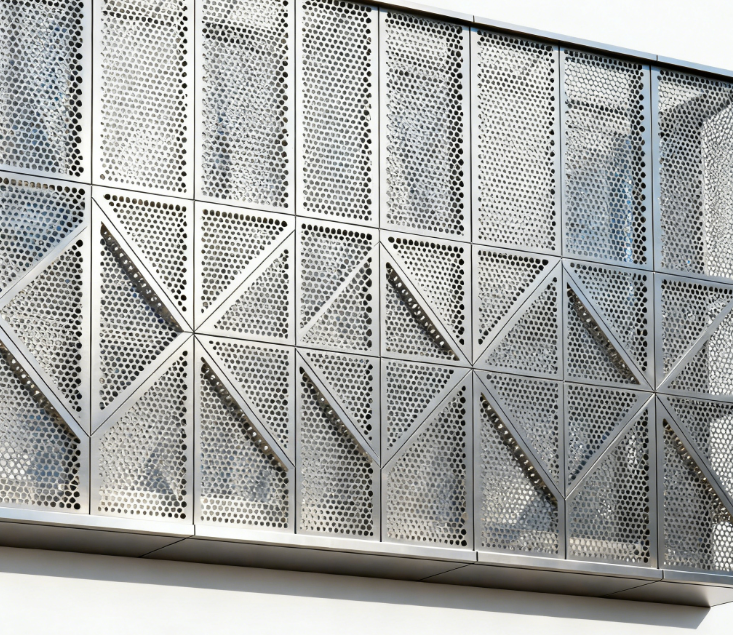

Aluminum Laser Cut Perforated Sun Shading and Ventilation Panels for Exterior Facades

Redefining sustainable façade design, Aluminum Laser Cut Perforated Panels merge structural precision, environmental performance, and artistic freedom. Crafted from high-strength aluminum, these panels enhance solar control, airflow, and daylighting—turning façades into intelligent, responsive architectural systems.

Technical Specifications & Attributes

• 1. Product Type: Aluminum Laser Cut Perforated Sun Shading and Ventilation Panels

• 2. Function: Solar shading, ventilation, light diffusion, and architectural decoration

• 3. Material: Aluminum alloy (AA3003, AA5052, 6061-T6)

• 4. Thickness Range: 2.0–5.0 mm

• 5. Manufacturing Method: CNC laser cutting with 0.1 mm tolerance

• 6. Surface Finish: PVDF coating, anodized, or powder-coated

• 7. Coating Durability: UV and corrosion resistant for 25+ years (ASTM D2247 tested)

• 8. Weight: 7–11 kg/m²

• 9. Perforation Pattern: Custom geometric, organic, or parametric designs

• 10. Open Area Ratio: 20–45% adjustable for airflow optimization

• 11. Reflectivity: 75–85% solar reflection

• 12. Thermal Regulation: 30% reduction in solar heat absorption

• 13. Daylight Control: 25% improvement in light uniformity

• 14. Energy Savings: 20–30% cooling load reduction

• 15. Acoustic Performance: 8–12 dB noise reduction (ASA certified)

• 16. Fire Rating: A2 non-combustible (EN 13501-1)

• 17. Corrosion Resistance: Excellent—ISO 9227 compliant

• 18. Wind Load Resistance: Designed to ASCE 7-22, up to 3.0 kPa

• 19. Environmental Certification: LEED, WELL, and BREEAM compatible

• 20. Surface Hardness: 3H–5H anti-scratch coating

• 21. Acoustic NRC Value: 0.6–0.75 (with optional acoustic backing)

• 22. Temperature Range: -25°C to +80°C

• 23. Color Range: 120+ RAL and metallic finishes

• 24. Panel Size: Up to 1500 × 3000 mm (custom)

• 25. Installation Type: Curtain wall integration, canopy shading, or louver system

• 26. Coating Type: PVDF / anodized / fluoropolymer

• 27. Sustainability Index: 0.94 (based on embodied energy data)

• 28. Maintenance: Self-cleaning nano-surface, minimal upkeep

• 29. Longevity: 30+ year service life

• 30. Wind & Seismic Design: ASCE and ASTM E330 tested

• 31. Structural Frame: Extruded aluminum subframe with hidden fixings

• 32. Recyclability: 100% recyclable aluminum structure

• 33. Sustainability Certifications: ISO 9001, ISO 14001 compliant

• 34. Airflow Efficiency: 20–25% increased ventilation rate

• 35. Integration: Compatible with Perforated Sunshade Ventilate & Acoustic Panels

• 36. Surface Texture: Matte, gloss, or brushed finish

• 37. CNC Precision: ±0.1 mm pattern accuracy

• 38. Smart System Compatibility: IoT façade monitoring (optional)

• 39. Acoustic Certification: ASA and ISO 717 validated

• 40. Case Study – London Office Retrofit: 23% energy savings, enhanced thermal comfort

• 41. Case Study – Dubai Hotel Upgrade: 26% energy reduction, luxury aesthetic transformation

• 42. Collaboration: Engineered with ASCE and Acoustical Society standards

Case Studies

• London Office Complex: Achieved 23% energy reduction and recognized for sustainable retrofit excellence by Springer and Architectural Digest.

• Dubai Resort: Reduced cooling energy by 26%, improved façade aesthetics, and enhanced guest comfort.

Applications

Ideal for commercial towers, universities, galleries, airports, and luxury hotels. Suitable for curtain walls, shading canopies, or ventilated façade systems requiring both design appeal and performance.

Innovation & Collaboration

In partnership with façade engineers, architects, and sustainability experts, our team applies CFD and acoustic simulations to achieve optimal design. Backed by ASCE and ASA standards, each project delivers measurable environmental and acoustic benefits.
