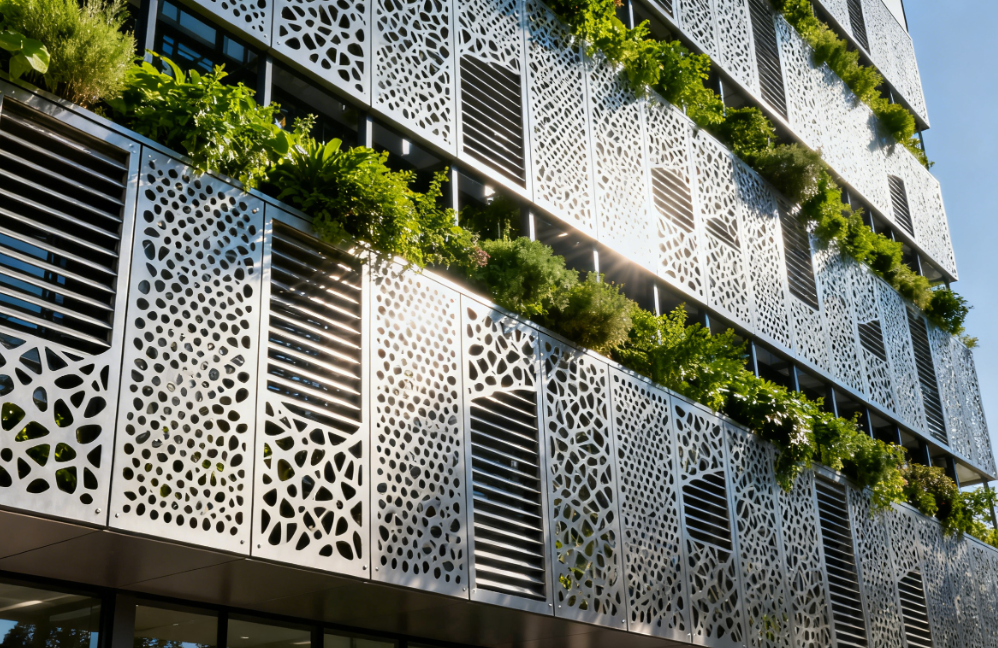

Custom Architectural Perforated Sun Shading and Ventilation Panels for Facade Design

In the era of high-performance architecture, custom perforated façade systems combine engineering precision with aesthetic expression. They optimize solar shading, airflow, and sound absorption, enabling architects to deliver energy-efficient, adaptive, and sustainable designs.

Technical Specifications & Attributes

• 1. Product Type: Custom Architectural Perforated Sun Shading and Ventilation Panels

• 2. Function: Solar control, ventilation, and acoustic optimization for façades

• 3. Material Options: Aluminum alloys (AA3003, 5052, 6061-T6) or stainless steel (AISI 304/316L)

• 4. Thickness Range: 2–5 mm (customizable)

• 5. Perforation Ratio: 20–50% open area, adjustable per project

• 6. Hole Geometry: Round, square, hexagonal, slot, or parametric gradient

• 7. Surface Finish: PVDF coating, anodizing, or powder coating

• 8. Coating Life: UV and corrosion resistant up to 25 years (ASTM D2247 tested)

• 9. Solar Reflectivity: 70–90% depending on color and finish

• 10. Energy Efficiency: Reduces cooling demand by up to 35%

• 11. Acoustic Performance: 10–15 dB noise reduction (ASTM E90 compliant)

• 12. Thermal Regulation: Internal temperature drop up to 5°C (ISO 16813 validated)

• 13. Structural Strength: High stiffness-to-weight ratio for façade safety

• 14. Fire Rating: Class A2, non-combustible (EN 13501-1)

• 15. Wind Load Resistance: ASCE 7-22 compliant, up to 3.2 kPa

• 16. Sustainability Certification: LEED, WELL, and BREEAM compatible

• 17. Environmental Standards: ISO 9001 and ISO 14001 certified

• 18. Acoustic NRC: 0.65–0.80 (with composite acoustic core)

• 19. Coating Hardness: 3H–5H surface durability

• 20. Weight: 7–14 kg/m²

• 21. Installation System: Subframe or curtain wall integration

• 22. Structural Frame: Extruded aluminum concealed fixing system

• 23. CNC Accuracy: ±0.2 mm for precise laser cutting

• 24. Surface Options: Matte, brushed, or metallic finishes

• 25. Reflective Coating Type: PVDF or nano-ceramic layer

• 26. Airflow Efficiency: Increases ventilation by 20–25%

• 27. Smart Control Integration: IoT and BMS compatible for adaptive shading

• 28. Corrosion Resistance: Excellent (ISO 9227 tested)

• 29. Color Range: 120+ RAL colors and custom patterns

• 30. Design Modularity: Replaceable panels for maintenance and updates

• 31. Longevity: 30+ year lifespan

• 32. Recyclability: 95–100% recyclable aluminum or stainless steel

• 33. Sustainability Index: 0.94 (circular economy compliant)

• 34. Maintenance: Low-maintenance self-cleaning nano-coating

• 35. Compatibility: Works with acoustic, decorative, and ventilated systems

• 36. Surface Temperature Reduction: 10–15°C lower external heat absorption

• 37. Dynamic Design Options: Gradient perforation, kinetic panels, LED integration

• 38. Case Study – Horizon Tower, Singapore: 24% energy reduction, 5°C indoor temperature drop

• 39. Case Study – Nordic Energy Campus, Helsinki: 40% glare reduction, enhanced daylight quality

• 40. Acoustic Certification: ASA and ISO 717 validated

• 41. Smart System: Automated shading with solar sensors

• 42. Environmental Compliance: ISO 14021 recyclable design

Case Studies

• Horizon Corporate Tower – Singapore: Custom perforated panels reduced cooling costs by 24% and improved thermal comfort, validated under ISO 16813.

• Nordic Energy Campus – Helsinki: Adaptive aluminum panels enhanced daylight balance and achieved 40% glare reduction, recognized by Architectural Digest.

Applications

Ideal for office buildings, universities, cultural centers, airports, and public institutions. Suitable for curtain walls, louvers, and ventilated façades requiring performance-driven design.

Innovation & Sustainability

Our systems merge architectural creativity with environmental intelligence. By integrating data-driven design, CFD airflow modeling, and acoustic analysis, each project achieves measurable energy savings and enhanced occupant comfort.
