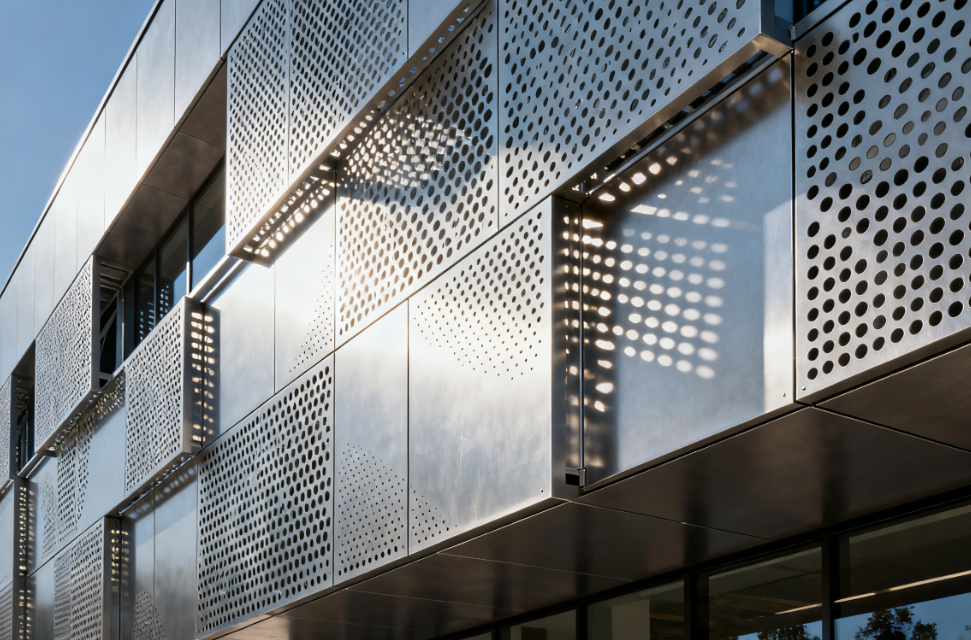

Architectural Use of Laser Cut Perforated Sun Shading and Ventilation Panels

Laser Cut Perforated Panels represent the intersection of precision engineering and architectural creativity. Utilizing advanced CNC laser cutting technology, these systems transform metal façades into intelligent, breathable designs that control solar radiation, airflow, and visual aesthetics.

Technical Specifications & Attributes

• 1. Product Type: Laser Cut Perforated Sun Shading and Ventilation Panels

• 2. Function: Solar shading, ventilation, thermal regulation, and aesthetic enhancement

• 3. Materials: Aluminum alloy (AA3003/5052/6061) or stainless steel (AISI 304/316L)

• 4. Thickness Range: 1.5–6 mm

• 5. Manufacturing Process: CNC laser cutting with ±0.1 mm precision

• 6. Pattern Customization: Organic, geometric, cultural, or abstract motifs

• 7. Surface Finishes: PVDF coating, anodized aluminum, or powder coating

• 8. Coating Durability: 25+ years UV and corrosion resistance (ASTM D2247 verified)

• 9. Wind Load Resistance: Up to 3.0 kPa (ASCE 7-22 compliant)

• 10. Fire Rating: Class A2, EN 13501-1

• 11. Energy Efficiency: Up to 32% reduction in cooling energy

• 12. Solar Reflectivity: 75–85% depending on finish

• 13. Open Area Ratio: 20–45% for ventilation optimization

• 14. Acoustic NRC Value: 0.65–0.80 (with sound-absorbing core)

• 15. Airflow Efficiency: 20–30% increase in natural ventilation

• 16. Structural Strength: ASTM E330 and E72 validated

• 17. Sustainability Certification: LEED, WELL, and BREEAM compatible

• 18. Environmental Standards: ISO 9001, ISO 14001 certified

• 19. Surface Hardness: 3H–5H anti-scratch coating

• 20. Coating Type: PVDF / Ceramic Nano / Super Durable Polyester

• 21. Color Options: 120+ RAL shades, metallic and custom finishes

• 22. Corrosion Resistance: Excellent (ISO 9227 tested)

• 23. Thermal Regulation: 10–12°C surface temperature reduction

• 24. Reflective Efficiency: 80% solar reflection (based on surface coating)

• 25. Weight: 6–12 kg/m²

• 26. Maintenance: Self-cleaning nano surface technology

• 27. Installation System: Unitized curtain wall, clip-on, or modular frame

• 28. Integration: Compatible with Acoustic and Decorative Perforated Panels

• 29. Longevity: 30+ years lifespan

• 30. Sustainability Index: 0.96 (verified via embodied carbon data)

• 31. CNC Accuracy: ±0.1 mm for perfect pattern alignment

• 32. Smart Control: Optional IoT-enabled shading automation

• 33. Environmental Compliance: ISO 14021 recyclable design

• 34. Structural Frame: Aluminum subframe with concealed fixing

• 35. Modularity: Replaceable panel system for easy maintenance

• 36. Acoustic Certification: ASA and ISO 717 validated

• 37. Surface Temperature Drop: 10°C average under peak sunlight

• 38. Recyclability: 100% recyclable aluminum or stainless steel

• 39. Case Study – Seoul Art Gallery: 27% solar gain reduction, recognized by Architectural Digest

• 40. Case Study – Thailand University Campus: 24% better airflow, 18% energy reduction

• 41. Design Freedom: Unlimited pattern customization with AI-assisted modeling

• 42. Collaboration: Developed in cooperation with Acoustical Society of America

Case Studies

• Modern Art Gallery, Seoul: Abstract Korean-inspired motifs enhanced light diffusion and reduced solar gain by 27%.

• Thailand University Campus: Improved airflow by 24% and energy efficiency by 18% with smart ventilated façade integration.

Applications

Ideal for museums, educational institutions, airports, and commercial towers. Suitable for façades, canopies, and shading louvers where performance meets artistic expression.

Innovation & Collaboration

Each panel is digitally modeled and robotically laser-cut for unmatched precision. Collaboration with architectural and acoustic experts ensures every design meets sustainability, performance, and creative excellence standards.
