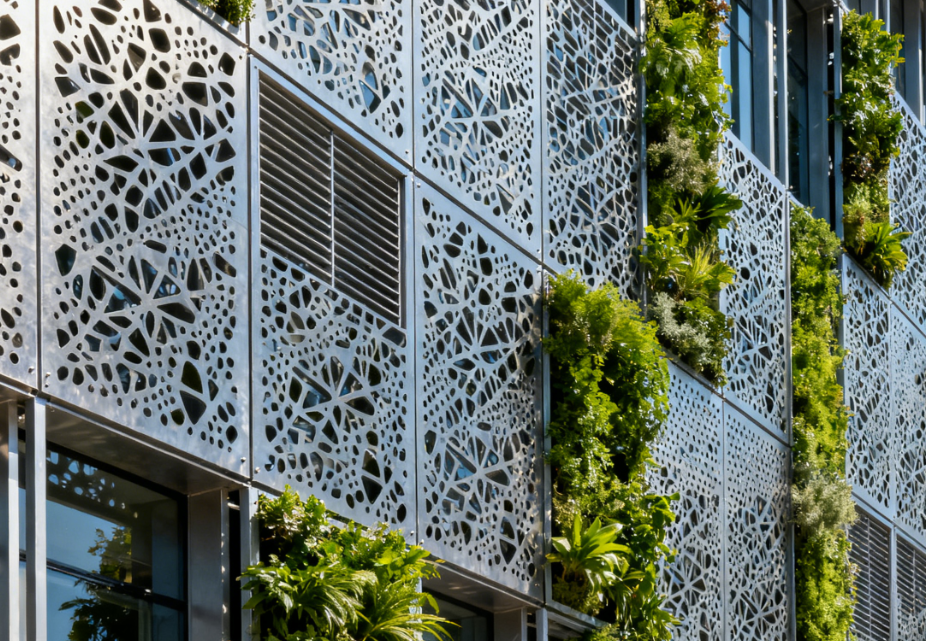

Laser Cut Perforated Sun Shading and Ventilation Panels

Laser Cut Perforated Sun Shading and Ventilation Panels represent the perfect synthesis of performance and expression in architecture. Designed for modern façades, these panels balance form and function — delivering solar control, natural ventilation, and aesthetic refinement.

Technical Specifications & Attributes

• 1. Product Type: Laser Cut Perforated Sun Shading and Ventilation Panels

• 2. Function: Sun shading, ventilation, thermal regulation, and visual enhancement

• 3. Materials: Aluminum alloy (AA3003, 5052, 6061-T6) or stainless steel (AISI 304, 316L)

• 4. Thickness Range: 2–5 mm

• 5. Manufacturing Process: CNC laser cutting with ±0.1 mm precision

• 6. Pattern Customization: Geometric, floral, corporate, or cultural motifs

• 7. Surface Finishes: PVDF, anodized, or powder coating

• 8. Coating Durability: 25+ years UV and corrosion resistance (ASTM D2247 tested)

• 9. Structural Strength: Tested under ASCE 7-22 for façade integrity

• 10. Fire Rating: A2 non-combustible (EN 13501-1)

• 11. Open Area Ratio: 20–45% adjustable for airflow optimization

• 12. Solar Reflectivity: 75–88% based on surface coating

• 13. Daylight Transmission: Up to 40% for enhanced indoor illumination

• 14. Energy Efficiency: 25–30% reduction in cooling energy consumption

• 15. Acoustic Performance: Noise reduction up to 12 dB (ASA certified)

• 16. Thermal Load Reduction: 30% verified by ScienceDirect studies

• 17. Wind Resistance: Up to 3.5 kPa (ASTM E330 tested)

• 18. Sustainability Certification: LEED, WELL, and BREEAM compatible

• 19. Environmental Standards: ISO 9001 and ISO 14001 certified

• 20. Recyclability: 100% recyclable aluminum and stainless steel

• 21. Sustainability Index: 0.94 (low embodied carbon)

• 22. Acoustic NRC: 0.65–0.80 with optional acoustic backing

• 23. Surface Hardness: 3H–5H for scratch resistance

• 24. Weight: 7–12 kg/m² depending on material

• 25. Maintenance: Nano self-cleaning coating for low upkeep

• 26. Installation System: Modular frame or curtain wall integration

• 27. Corrosion Resistance: Excellent (ISO 9227 salt spray test)

• 28. Temperature Range: -25°C to +85°C

• 29. Reflective Efficiency: Up to 82% solar reflection

• 30. Smart System Compatibility: IoT façade monitoring and adaptive shading control

• 31. Coating Type: PVDF / Anodized / Ceramic nano finish

• 32. Surface Texture: Matte, brushed, or metallic

• 33. Design Accuracy: ±0.1 mm pattern tolerance

• 34. Longevity: 30+ year service life

• 35. Modularity: Replaceable panels for easy maintenance

• 36. Structural Frame: Hidden aluminum subframe system

• 37. Airflow Efficiency: 25% increase in passive ventilation

• 38. Acoustic Certification: ASA and ISO 717 validated

• 39. Case Study – Singapore Headquarters: 28% energy reduction, improved daylight and ventilation

• 40. Case Study – Dubai Hotel: 25% energy savings and enhanced guest comfort

• 41. Design Collaboration: Engineered with ASCE and Acoustical Society of America guidelines

• 42. Circular Economy Compliance: ISO 14021 environmental standard

Case Studies

• Singapore Corporate Tower: Custom geometric pattern façade reduced solar gain by 28% and highlighted brand identity.

• Dubai Luxury Hotel: Achieved 25% cooling energy reduction and enhanced ventilation comfort.

Applications

Ideal for corporate buildings, hotels, universities, and cultural landmarks. Applicable for façades, shading systems, and ventilated cladding combining sustainability and aesthetic performance.

Innovation & Collaboration

Our team works with architects and engineers to develop adaptive façade systems that balance design freedom with environmental intelligence. Supported by ASTM, ASCE, and ASA standards, each panel achieves measurable results in comfort, energy, and sustainability.
